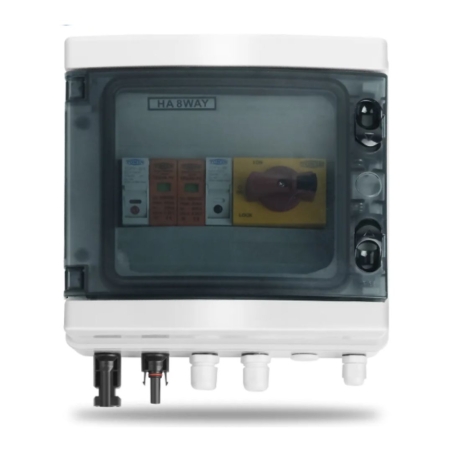

1000V DC TOMZN TOPV8-1-1
SWITCHBOARD811
Switchboard TOMZN TOPV8-1-1 1000V DC - offset.
Switchboard TOPV8-1-1
It is suitable for inverters (Max. input voltage 1000V DC, 1 PV inputs, 1 output). It is made of PC technical material. The design and configuration is in accordance with the Technical Specification for Photovoltaic Coupling Devices CGC/GF 037:2014.
The main advantages of the product are:
- DC fuse
- with DC surge protection
- with DC circuit breaker or DC load isolating switch
- great adaptability
- waterproof
- dust and ultraviolet radiation resistance
- easy installation
- simplified system wiring
- impact resistance
- use: For monocrystalline silicon solar modules, polycrystalline silicon solar modules, thin film solar modules.
- Degree of protection: IP65
Technical specifications:
- Maximum voltage: 1000V DC
- Protection: level II
- Rated current: 32A
- Rated discharge current: 20kA
- Maximum discharge current: 40kA
- Voltage protection level: 3.2kV
- Maximum continuous operating voltage Uc: 1050V
- Protection degree: IP65
- Operating temperature: -25 °C ~ 55 °C
Features
- Rated voltage (V)
- 1000V
- Dimensions
- 240 × 100 × 210 mm
- Current
- DC (direct current)
- Package weight
- 0.90 kg
Specific References
- EAN13
- 8595210330105
