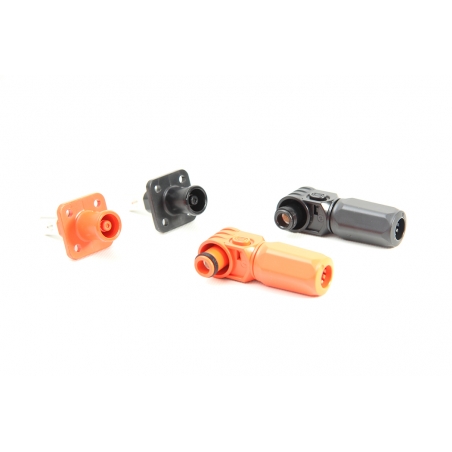

DC Power Cable Connectors SurLok QLB 200A 1000V, 2 pairs (male + female)
CONDCQLB2001000PAIRS
Industrial power connectors DC, QLB SurLok 200A 1000V. 2 pairs (female + male) of cable connectors included.
DC power industrial connectors QLB SurLok 200A 1000V
Connection accessory for high current loads in the form of an orange and black plug and socket pair with IP 67 protection rating. This is an industrial connector with an 8mm diameter contact terminating in a 5mm threaded busbar and a 360° swivel plug, which eliminates the use of screws, nuts and washers including the appropriate installation tools. The plug includes a push button release lock.Note: QLB surlok is not compatible with pylontech batteriesSurLok QLB 200A 1000V DC power cable connectors are designed for safe and efficient interconnection in high current applications. This set includes two pairs of connectors (male and female) with a maximum current of 200A and an operating voltage of up to 1000V.
Key Features:
High reliability.
Easy installation.
Highly durable: With IP67 protection, these connectors are protected against dust and water, ensuring their longevity even in harsh environments.
Applications:
These connectors are ideal for applications where safe and efficient interconnection with high current loads is required, such as electric vehicles, energy storage systems and industrial equipment.
By investing in the SurLok QLB 200A 1000V DC power cable connectors, you get a reliable and efficient solution for your high current applications that will provide peace of mind in demanding operating conditions.
Technical Specifications:
◾ Package contents: 2 pairs (female, male)
◾ Voltage: 1000V
◾ Maximum current: 200A
◾ Thread diameter: 5 mm
◾ Contact diameter: 8 mm
◾ Degree of protection: IP 67
◾ Plug: rotatable, 360°
Features
- Operating temperature (°C)
- -40 °C ~ 110 °C
- Dimensions
- 20 × 65 × 28 mm (plug), 29 × 29 × 56 mm (receptacle)
- Colour
- orange & black
- Made of
- PC, copper
- Maximum current
- 200 A
- Operating voltage
- 1000 V
- Cutting area range
- 45 ~ 50 mm²
- Series
- QLB
- Package weight
- 0.25 kg
Specific References
- EAN13
- 8595210332260
