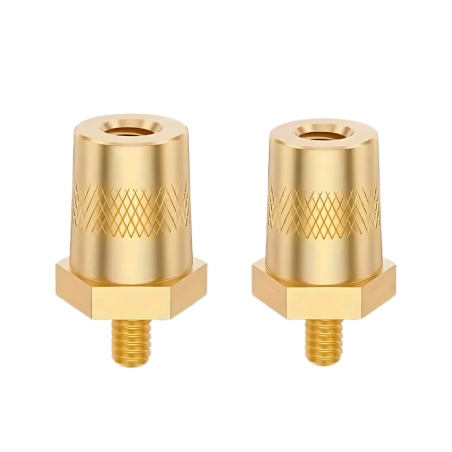

Reducer for battery M8, brass

M8 reducer for battery terminals

Use these reducers to connect additional cables and equipment, for example to existing wiring in a motorhome or caravan. The reducer set has 2 pieces, respectively a positive and a negative adapter. Brass has been used for their manufacture and they have a knurling around the perimeter. Therefore, they can offer you a convenient and solid connection with good electrical conductivity and excellent corrosion resistance.

Technical specifications:

• Material: Brass
• Thread for connection to the battery (bottom): M8
• Threaded hole in the pole (top): M8 (for possible additional attachment)
• Base height: 4 mm

Adapter for positive (+) pole:

• Tapered pole diameter: 17-19 mm
• Overall height: 20 mm
• M8 bottom thread
length
• : 8 mm

Adapter for negative (-) pole:

• Cone pole diameter: 15-17 mm
• Overall height: 19 mm
• Bottom thread
length
• M8: 7 mm
