Composite battery - AkuBox® 230Ah 12V Smart Bluetooth. Made of traction LiFePO4 cells including BMSand switch in plastic box.
AkuBox LiFePO4 314Ah 12.8V 4.02kWh - with heating
BOXLIFEPO4314V12H

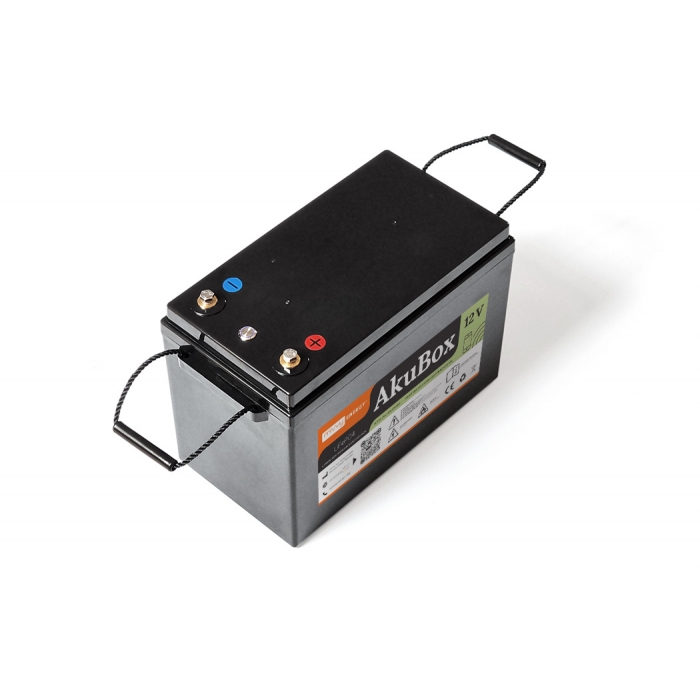

Modular battery pack –AkuBox® 314Ah 12V Smart Bluetooth with active balancing (2000 mA). Made fromLiFePO4tractioncells, includinga BMS,a power switch, and cell heating for charging in sub-zero temperatures, all housed in a plastic box.
Price: Kč19,449
Price excl. VAT: Kč16,074
Price excl. VAT: Kč16,074
Assembled by us
* Product photo is for illustration purposes
If we do not have the goods in stock, we will specify the production and delivery date individually upon request.
Read more: how pre-orders work
Reliable mivvyENERGY AkuBoxes®
Get a reliable power source for your projects with our compact lithium batteries in the AkuBox®. These battery packs offer high capacity and a long service life. Whether you’re building electronic devices or constructing solar systems, our batteries will always provide you with plenty of power.
Default password for BMS connectivity: 1234
! The built-in BMS cannot be reconfigured; only the battery status can be monitored !
Technical specifications:
- Rated capacity: 314Ah
- Rated voltage: 12.8V
- Energy: 4.02kWh
- Connectivity: Smart Bluetooth
- Final charging voltage: 14.00V
- Final discharge voltage or 0% SoC: 12.6V
- Active balancing: 2A
- Maximum allowed voltage range at 100% DoD (if exceeded, the BMS disconnects the battery): 12V~14.4V
- Maximum continuous charging current: 150A
- Maximum continuous discharging current: 200A
- Charge/discharge cycle efficiency: 97%
- Protection rating: IP54
- Number of cycles / service life: 4000 @ 70% DoD
- Chemical composition of cells: LiFePO4
- Charging operating temperature: 0°C~45°C
- Discharging operating temperature: -20~45°C
- Assembled from Grade A+ cells
- Multiple Akuboxes cannot be connected in series.
- The BMS is factory-set to specific parameters. Any unauthorized intervention or modification of the set parameters will result in permanent damage to the product and void the warranty.
Features
- Rated capacity (Ah)
- 314Ah
- Energy (kWh)
- 4,02kWh
- Rated voltage (V)
- 12.8V
- System voltage
- 12V
- Connectivity
- Smart Bluetooth
- Box material
- black plastic
- Dimensions
- 345×245×190 mm
- Type
- LiFePO4 battery
- Model
- AkuBox®
- Functions
- Heating
- Package weight
- 24.00 kg
Specific References
- EAN13
- 8595210300856
No customer reviews for the moment.
Modular battery pack –AkuBox® 314Ah 12V Smart Bluetooth with active balancing (2000 mA). Made fromLiFePO4tractioncells, includinga BMS,a power switch, and cell heating for charging in sub-zero temperatures, all housed in a plastic box.
