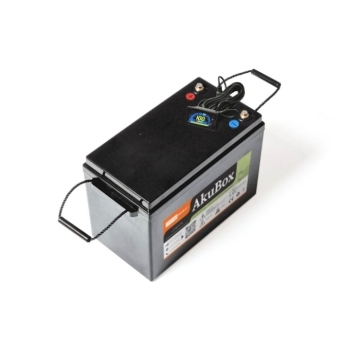

    AkuBox LiFePO4 314Ah 25,60V 8,03kWh with external LCD
    akubox-bluetooth
    JK-bms-app
    JK-bms-iOS
    AkuBox: LiFePO4 314Ah 24V BLUETOOTH - mivvyENERGY.cz
    AkuBox: LiFePO4 314Ah 24V BLUETOOTH - mivvyENERGY.cz

Reliable AkuBoxes® mivvyENERGY

Get a reliable power source for your projects with our compact lithium batteries in the AkuBox®. These battery packs have high capacity and long life. Whether you are creating electronic devices or setting out to build solar systems, our batteries will always provide you with plenty of power.

Default password for BMS connectivity: 1234
! The built-in BMS cannot be reconfigured, only the battery status can be monitored !

  • Multiple Akuboxes cannot be connected in series.
  • From the factory, the BMS is set to specific parameters. Any unprofessional intervention or alteration of the set parameters will result in permanent damage to the product and void the warranty.
  • Nominal energy: 8.03kWh
  • Usable energy: 6.43kWh
  • Nom.Voltage: 25.60V
  • End charge voltage: 28V
  • End discharge voltage or reaching 0% SOC: 25.20V
  • Maximum allowable voltage range 100% DoD If exceeded, the BMS will disconnect the battery: 24V-28.80V
  • Nominal capacity: 314Ah
  • Usable capacity: 251Ah
  • Maximum charging current (continuous): 100A
  • Maximum discharging current (continuous): 200A
  • Maximum discharging current (instantaneous): 350A (3 sec.)
  • Active current balancing: Yes 2A
  • When max.Instantaneous current will shut down Charge/discharge cycle efficiency: 97%
  • Lifetime: 4000 cycles at 80% DoD
  • Protection rating: IP21
  • Weight: 49Kg
  • Dimensions W x H x D: 640×245×220mm
  • Cell composition: 0-45°C
  • The battery is designed for indoor installation and the protective BMS will shut it down when charging below 0 degrees Celsius.
  • Default password for BMS connectivity: 1234
  • Cable length to LCD: 3m
mivvy ENERGY

Features

Rated capacity (Ah)
314Ah
Energy (kWh)
8.03kWh
Rated voltage (V)
25.60V
System voltage
24V
Connectivity
Smart Bluetooth
Box material
black plastic
Dimensions
640 x 245 x 220 mm
Type
LiFePO4 battery
Model
AkuBox®
Package weight
52.00 kg

Specific References

EAN13
8595210300597

Download

Manual-AkuSet-Box

Download (1.14MB)

AkuBox - 24V (manual cs)

AkuBox - 24V (manual cs)

Download (282.3KB)
