Composite battery - AkuBox® 300Ah 24V 7,66kWh from traction Li-Ion cells including display, BMS and switch in metal box.

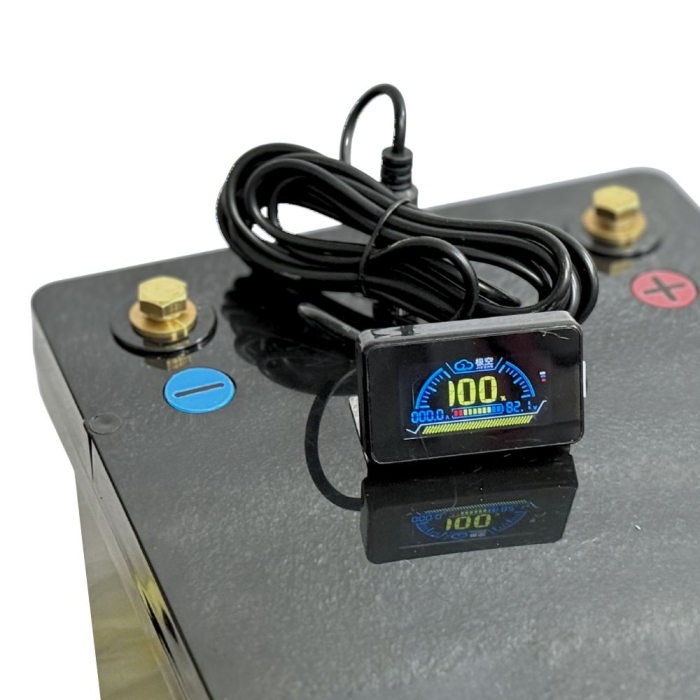

AkuBox LiFePO4 345Ah 25.60V 8.83kWh with External LCD (PREO-VI26)
BOXLIFEPO4345V24D

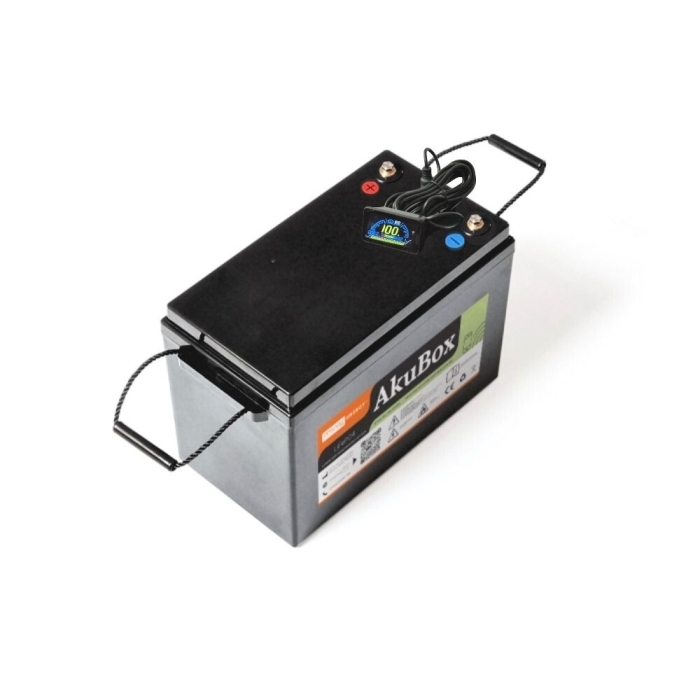

Modular battery pack –AkuBox® 345Ah 25.60V Smart Bluetooth with active balancing and external LCD. Made from LiFePO4 traction cells, including a BMS and a power switch, housed in a plastic box.
Price: Kč30,999
Price excl. VAT: Kč25,619
Price excl. VAT: Kč25,619
Assembled by us
* Product photo is for illustration purposes
If we do not have the goods in stock, we will specify the production and delivery date individually upon request.
Read more: how pre-orders work
Reliable mivvyENERGY AkuBoxes®
Get a reliable power source for your projects with our compact lithium batteries in AkuBox®. These battery packs offer high capacity and a long service life. Whether you’re building electronic devices or constructing solar systems, our batteries will always provide you with plenty of power.
Default password for BMS connectivity: 1234
! The built-in BMS cannot be reconfigured; only the battery status can be monitored !
Technical specifications:
- Rated capacity: 345Ah
- Rated voltage: 25.60V
- Energy: 8.83kWh
- Connectivity: Smart Bluetooth
- Cut-off charging voltage: 28.40V
- End-of-discharge voltage or 0% SOC: 25.20V
- Active balancing: 2A
- Maximum allowed voltage range at 100% DoD (if exceeded, the BMS disconnects the battery): 24V~28.80V
- Maximum continuous charging current: 85A
- Maximum continuous discharging current: 120A
- Maximum discharging current (instantaneous): 350A (3 sec.)
- Charge/discharge cycle efficiency: 97%
- Protection rating: IP21
- Number of cycles / lifespan: 4000 @ 70% DoD
- Chemical composition of cells: LiFePO4
- Operating temperature (recommended for full cycle life): 10°C~25°C
- Operating temperature: 0°C~45°C
- Weight: 50 kg
- Cable length to LCD: 3 m
- Assembled from Grade A+ cells
ℹ️ Technical specifications and the user manual can be found in the attached documents. We ship the product without a printed manual; please use the electronic version. The package includes only the AkuBox®.
Warning:
❗Multiple AkuBox® units cannot be connected in series.
❗The BMS is factory-set to specific parameters. Any unauthorized tampering or alteration of the set parameters will result in permanent damage to the product and void the warranty.
Features
- Rated capacity (Ah)
- 345 Ah
- Energy (kWh)
- 8,83 kWh
- Rated voltage (V)
- 25,60V
- System voltage
- 24V
- Connectivity
- Smart Bluetooth
- Box material
- black plastic
- Dimensions
- 640×245×220 mm
- Type
- LiFePO4 battery
- Model
- AkuBox®
- Package weight
- 50.00 kg
Specific References
- EAN13
- 8595210300832
No customer reviews for the moment.
Modular battery pack –AkuBox® 345Ah 25.60V Smart Bluetooth with active balancing and external LCD. Made from LiFePO4 traction cells, including a BMS and a power switch, housed in a plastic box.
