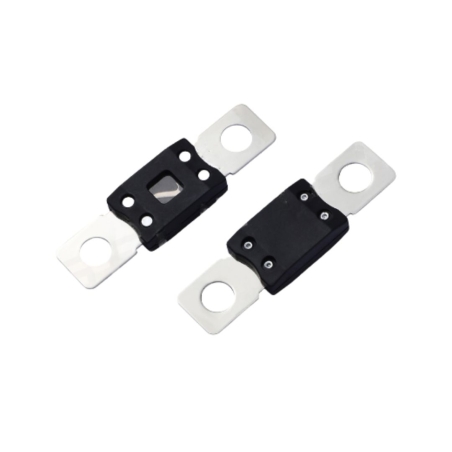

Battery DC fuse 72V 300A
FUSE300A72V
Battery DC fuse 72V 300A suitable for 12V and 24V DC systems.
Battery DC fuse 72V 300A from Selittel
Selittel's DC fuse is designed to provide safe DC interruption in solar power systems, battery systems and other high current applications.
-
-
Technical specifications:
- ◾ Rated voltage: 72V DC
- ◾ Operating temperature range: -40℃~125℃
- ◾ Current: 300A
- ◾ Mounting torque: 8-12Nm W/M8
-
- Testing current 30A ~ 200A 225A ~ 600A
- 75% / 4h min.
- 100% 4h min. /
- 135% 120 seconds ---1800seconds /
- 200% 1 second --- 15 seconds 1 second --- 15 seconds
- 350% 0.3 seconds - 5 seconds 0.3 seconds - 5 seconds
- 600% 0.1 seconds - 1 second 0.1 seconds - 1 second
-
Features
- Rated voltage (V)
- 72V
- Rated current
- 300A
- Current
- DC (direct current)
- Package weight
- 0.01 kg
Specific References
- EAN13
- 8595210366272
No customer reviews for the moment.
Battery DC fuse 72V 300A suitable for 12V and 24V DC systems.
