Cell LiFePO4 100Ah 3,2V EVE LF100LA Grade A+ (2xM6)
LIFEPO4100LA

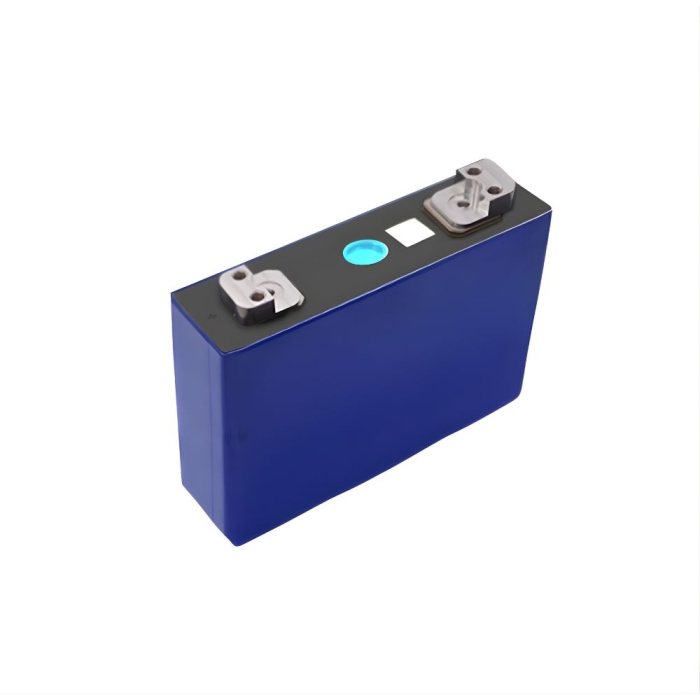

Prismatic LiFePO4 traction cell with a capacity of 100Ah 3.2V for universal use from EVE.
Lithium cells for long-lasting performance
Powerful lithium cells that deliver long-lasting performance for your projects. These lightweight and compact batteries offer excellent energy density and fast charging with long life. With our lithium cells, you'll be able to power your equipment with ease, and with confidence in their long-term reliability. Take on projects with the confidence that power will always be on hand!
Notice: Connection hardware (busbars) is not included in the basic package. If you are building a battery pack, please remember to check the Extra Options – BUSBARS box above.
Technical specifications:
- Rated capacity: 100 Ah
- Rated voltage: 3.2 V
- Energy: 320 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Maximum charging current: 100A / 1C
- Maximum discharge current: 100A / 1C
- Internal resistance: 0.5 mΩ
- Number of cycles / lifetime: 5000
- Operating temperature / charging: 0 °C ~ 65 °C
- Operating temperature / discharging: -20 °C ~ 65 °C
- Storage temperature: -20 °C ~ 45 °C (long term 0 °C ~ 35 °C)
- Thread: 2x M6
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 100
- Energy (kWh)
- 320 Wh
- Rated voltage (V)
- 3,2
- Clamp and tightening torque
- 2x M6 / 6 Nm
- Dimensions
- cca 160 × 115 × 50 mm
- Case made of
- aluminium
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 2.20 kg
Specific References
- EAN13
- 8595210365480
No customer reviews for the moment.
Prismatic LiFePO4 traction cell with a capacity of 100Ah 3.2V for universal use from EVE.
