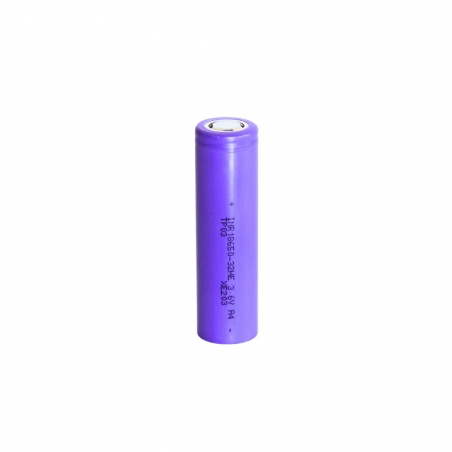

Li-Ion cell TENPOWER 18650 3200mAh 10A

Original 18650 TENPOWER battery cell. It is rechargeable, lithium-ion, with a capacity of 3200mAh. The cell has a discharge current up to 10A.



Technical specifications
:

  • Capacity: 3200mAh
  • Rated voltage: 3.6V
  • Energy: 11.52Wh
  • Maximum discharge current: 10A
  • Internal resistance: ≤35 mΩ
  • Number of cycles / lifetime: 1000
  • Operating temperature / discharge: -20 °C ~ 60 °C
  • Operating temperature / charge: 0 °C ~ 45 °C

Features

Chemical composition
Li-Ion
Rated capacity (Ah)
3200mAh
Energy (kWh)
11.52 Wh
Rated voltage (V)
3.6 V
Dimensions (D × H)
18.55 × 65.2 mm
Model
18650
Package weight
0.04 kg

Specific References

EAN13
8595210365466
New

Download

Datasheet Li-Ion 18650-32HE

Download (537.51KB)
