Yellow epoxy isolation plate with dimensions 170x200x0,5mm

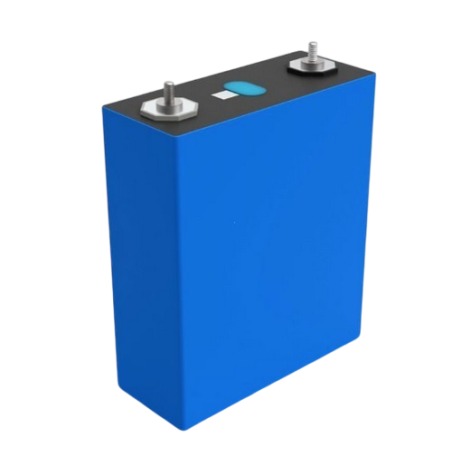

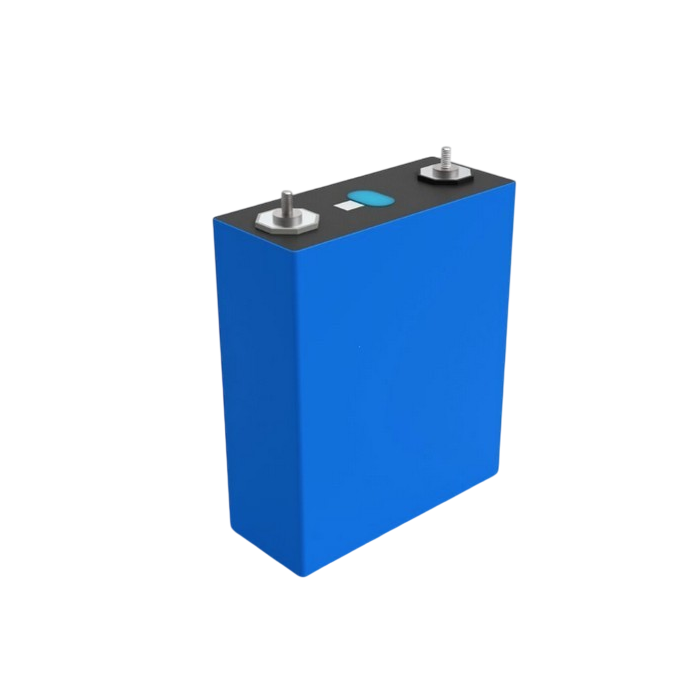

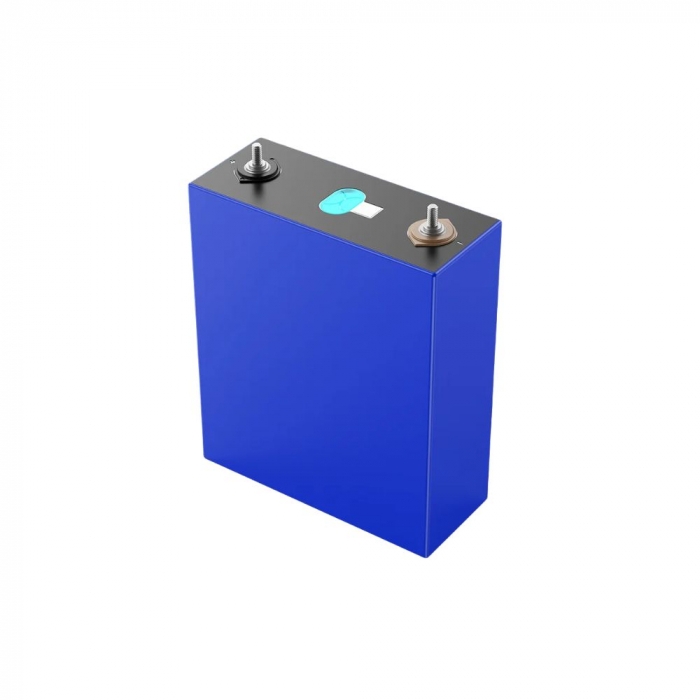

LF334 LiFePO4 334Ah 3.2V EVE Grade A+ Cell (R26-VI26)
LIFEPO4334E
New batch of LF334 EVE 334Ah 3.2V cells ● Prismatic traction battery ● LiFePO4 chemistry with high stability ● Grade A+ quality
Lithium Cells for Long-Lasting Power
High-performance lithium cells that deliver long-lasting power for your projects. These lightweight and compact batteries offer excellent energy density, fast charging, and a long service life. With our lithium cells, you can easily power your devices with confidence in their long-term reliability. Tackle your projects with the assurance that power will always be at your fingertips!
Note: Connectors are not included in the basic package. If you are building a battery pack, be sure to check the appropriate box in the Extra Options – CONNECTORS section above.
Technical Specifications:
- Batch: 2026
- Nominal capacity: 334 Ah
- Nominal voltage: 3.22 V
- Energy: 1075.48 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current: 167 A / 0.5C
- Standard discharging current: 167 A / 0.5C
- Maximum instantaneous discharge current: 1002 A / 3C (for a maximum of 30 seconds)
- Self-discharge rate: ≤ 4% / month
- Internal resistance: 0.18 mΩ ± 0.05 mΩ
- Cycle life / lifespan: 4000 @ 25 °C
- Operating temperature / charging: -10 °C ~ 65 °C
- Operating temperature / discharging: -35 °C ~ 65 °C
- Storage temperature: 0 °C ~ 35 °C (long-term up to 3 months) / -20 °C ~ 45 °C (short-term up to 1 month)
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 334Ah
- Energy (kWh)
- 1075.48 Wh
- Rated voltage (V)
- 3,2
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- 174×207×72 mm
- Case made of
- aluminum
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 5.52 kg
Specific References
- EAN13
- 8595210365503
No customer reviews for the moment.
New batch of LF334 EVE 334Ah 3.2V cells ● Prismatic traction battery ● LiFePO4 chemistry with high stability ● Grade A+ quality
