4.3" LCD touchscreen display for JK BMS V19 UART
LCD4INCH3TCHJKV19
LCD for BMS from JIKONG, version V19. Touchscreen with UART communication.
4.3" LCD for JK BMS
This display is an accessory for BMS units from their traditional manufacturer, JIKONG. You can use it to view real-time readings from your battery connected to the JK BMS. The LCD is a color touchscreen with a 4.3” diagonal.

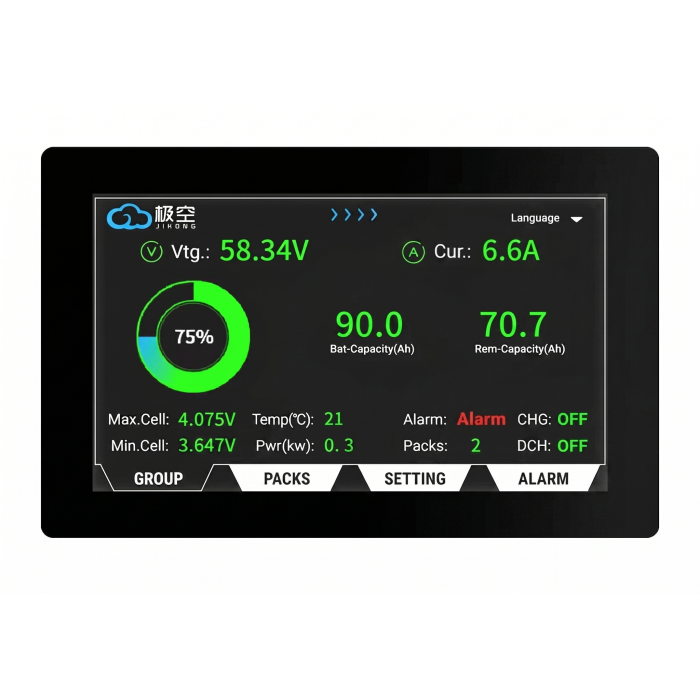

To monitor the battery’s status, it displays: SOC, voltage, current, MOS, temperature, and battery charge/discharge/equalization modes. It also shows the voltage of individual cells and alerts (alarms).
Compatibility

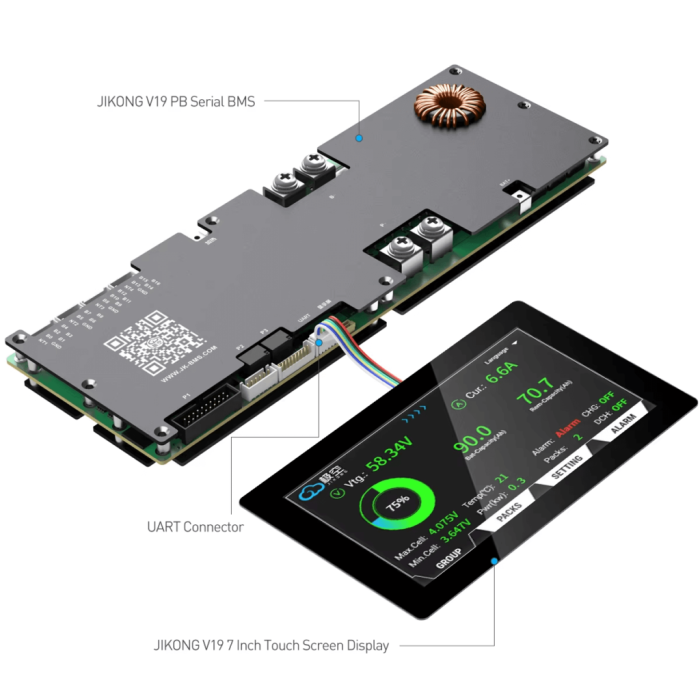

- Intended for: Exclusively JIKONG BMS version V19
- Supported models (JK-PBxA16SxxP series): E.g., JK-PB1A16S10P V19, JK-PB1A16S15P V19, JK-PB2A16S15P V19, JK-PB2A16S20P V19, JK-PB2A16S30P V19
- Note: The display will not work with older versions of JKBMS that do not have a dedicated port for the V19 LCD
- Displays real-time data and BMS status
- Supports RS485/CANBUS
- The system has built-in Bluetooth for connecting to a mobile app (supports both iOS and Android)
Package includes: display, connection cable, and switch
- Supports a wide power supply range of 9–36 V (we recommend using a standard 12 V DC power supply)
Features

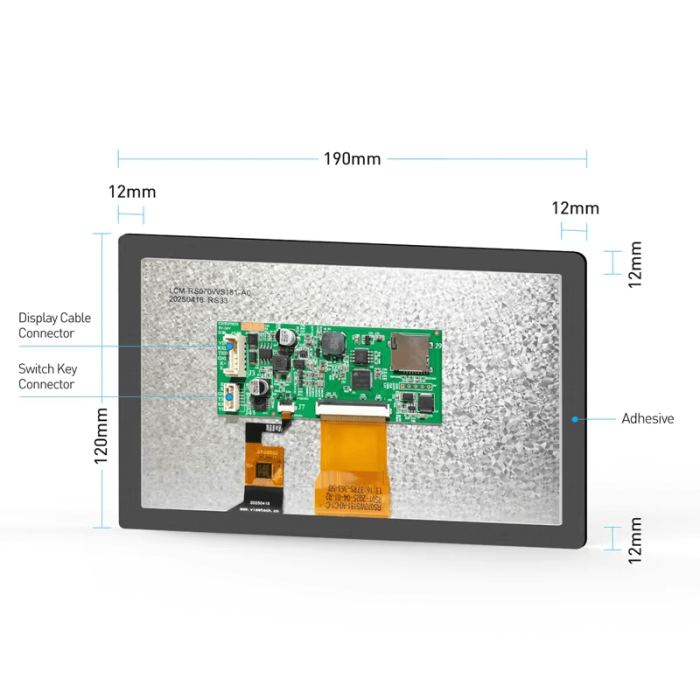

- Dimensions
- 190 × 120 × 12 mm
- Colour
- black
- Made of
- plastic
- Screen type
- Touch
- Port
- UART
- Package weight
- 0.50 kg
Specific References
- EAN13
- 8595210332123
