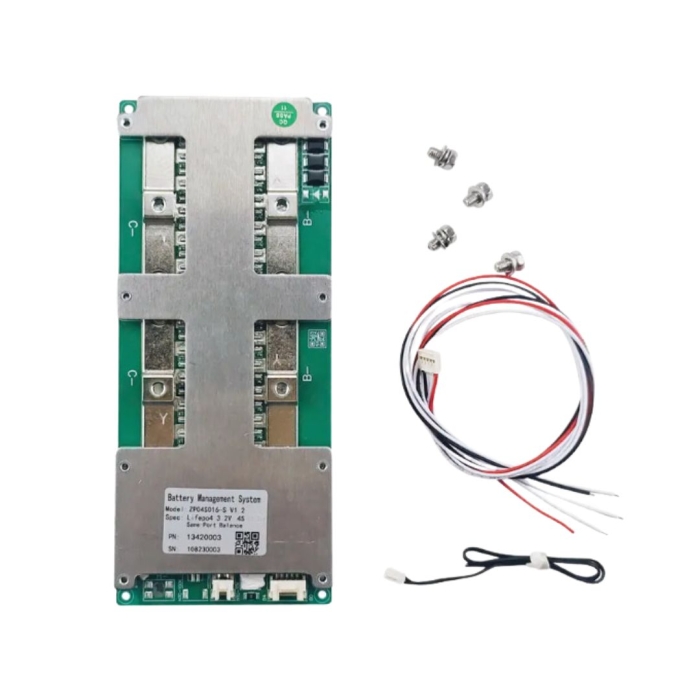

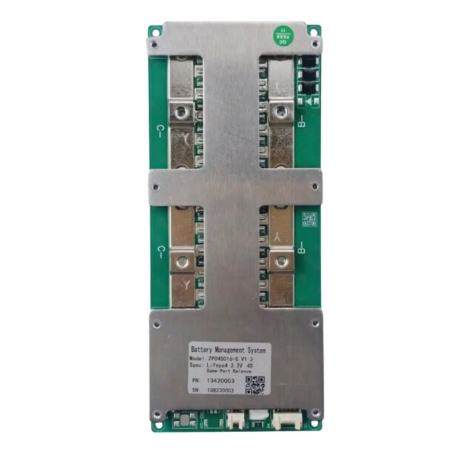

BMS 4S LiFePO4 200A 3,2V HW JBD serial connect
BMS4SLIFE200HW
Equipment designed to monitor and control the processes of charging, balancing and discharging batteries and to protect them.
Protective features:
- overcharge protection
- over-discharge protection
- over-discharge protection restoration
- over-current protection
- over-current protection restoration
Technical specifications:
- Constant charging current: 200A
- Constant discharging current: 200A
- Charging voltage: 3.2V
- Consumption: ≤150uA
- Internal resistance: ≤10mR
- Balancing current: max. 250mA
- Normal operating temperature range: -20°C ~ 75°C
- Storage temperature range at relative humidity <70%: -5°C ~ 40°C
- Dimensions (W × H × D): 200±1mm * 10±2mm * 85±1mm
- Type: JBD-ZP04S016
Before first use, the negative terminal of the battery must be connected to the BMS first. Then the balance connector, which is already connected to the individual battery cells, needs to be connected. Failure to follow this connection sequence may result in permanent damage to the BMS.
Features
- Chemical composition
- LiFePO4
- Dimensions
- 200±1mm * 10±2mm * 85±1mm
- Balancing current
- max. 250mA
- Operating temperature range
- -20 °C ~ 75 °C
- Constant charging current
- 200A
- Constant discharge current
- 200A
- Number of strings (categorically)
- 3~8S
- Package weight
- 1.00 kg
Specific References
- EAN13
- 8595210330051
No customer reviews for the moment.
Equipment designed to monitor and control the processes of charging, balancing and discharging batteries and to protect them.
