BMS with active balancer 3S 20A BANWANG
BALACTBW3S20A
BMS 20A with active balancer 0,6A for 3S Li-Ion battery cells.
BW BMS 3S 20A with active balancer
Balancing BMS for 3S lithium battery cells. Used to protect the battery against over-discharge or over-charge. Using the battery without a BMS will result in damage to the battery.
The BMS monitors the voltage of all cells and ensures that they are evenly charged. If the BMS detects that any of the set limits are exceeded, it protects the battery from damage by cutting off the power supply.
Technical specifications:
- Suitable for battery type: Li-Ion
- Number of batteries connected in series: 3
- Balance current: 0.6A
- Balance mode: active balance
- Normal operating temperature range: -30℃～80℃
- Communication: none
- Continuous current: 20A
Package includes: BMS

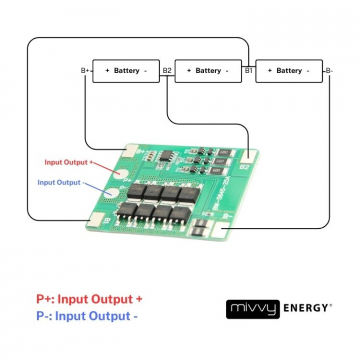

- This BMS with balancer is suitable for 3S battery assemblies
- P- (charge - / discharge -), P+ (charge + / discharge +)
- B- (- battery terminals), B+ (+ battery terminals)
- B1~B3 (battery cells)
Features
- Chemical composition
- Li-Ion
- Dimensions
- 56 × 45 ×3 mm
- Balancing current
- 0,6A
- Operating temperature range
- -30～80°C
- Number of strings (categorically)
- 3~8S
- Package weight
- 0.01 kg
Specific References
- EAN13
- 8595210331348
