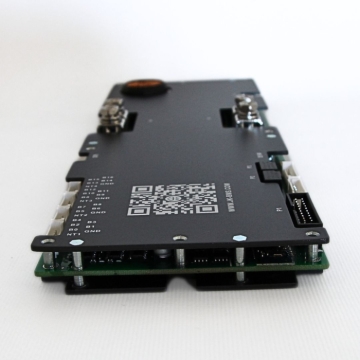

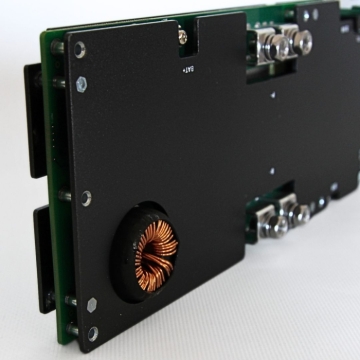

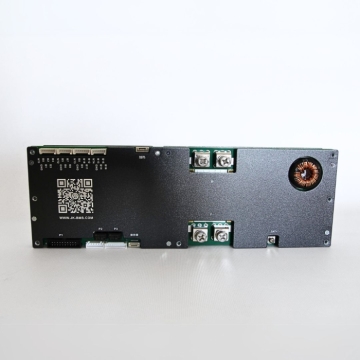

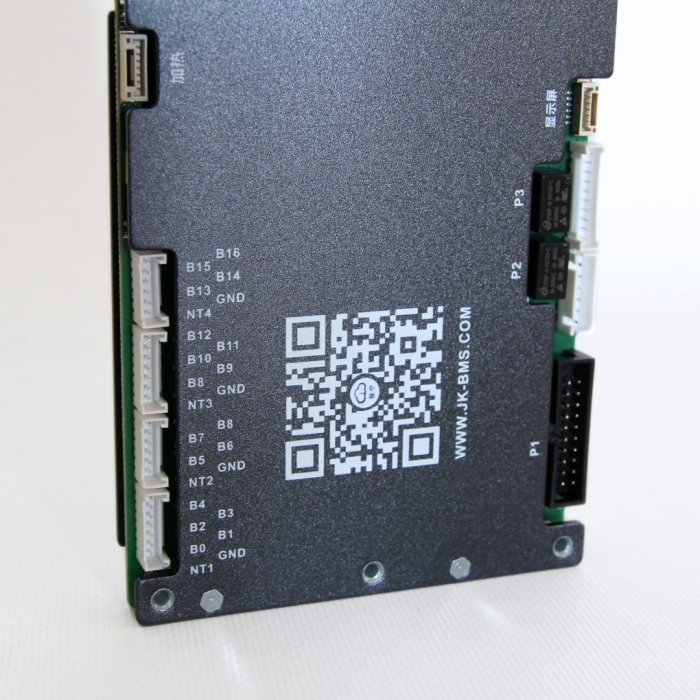

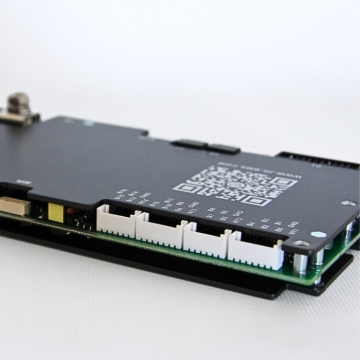

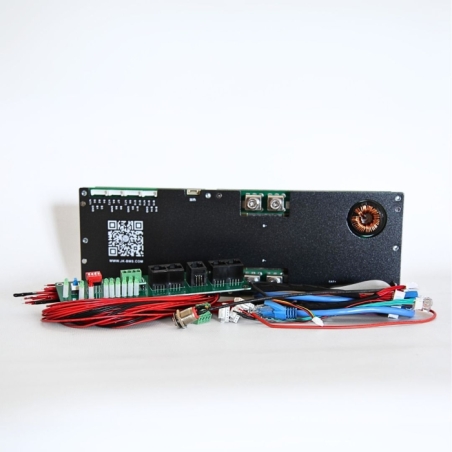

JK BMS SMART 7-16S and active balancer in one

Looking for a reliable and safe way to protect your batteries and extend their life? The JK BMS SMART 7-16S is a smart battery management system with an integrated active balancer to ensure battery stability, protection and efficient operation.

Mobile app for Jikong BMS

Monitor individual battery cell voltage, current or temperature and other parameters in real time. This Smart BMS has integrated Bluetooth technology that allows you to control and monitor your battery directly from your mobile phone or tablet. Use the QR code below to get the app.

QR pro aplikaciQR pro aplikaci

What can it be used for?

✅ Home solar power plants - Store energy from solar panels for later ✅ Backup power supplies (UPS) - Secure power during power outages ✅ Caravans and motorhomes - Reliable power on the go ✅ Off-grid systems - For cottages and places without access to the grid ✅ Electric mobility - Optimize batteries for electric bikes, scooters and other devices.



Why get one?

Protects your battery from overcharging, deep discharge and overheating Actively balances the voltage between cells to extend battery life Intelligent real-time monitoring for maximum safety. Wide compatibility with different battery types and applications.



Features:

  • Active balancing LED status indicators
  • Remote control via app
  • RS485\CAN\RS232 communication support
  • Total voltage detection
  • Accurate time logging
  • Short circuit protection
  • Temperature detection and protection
  • Bluetooth - Android, IOS

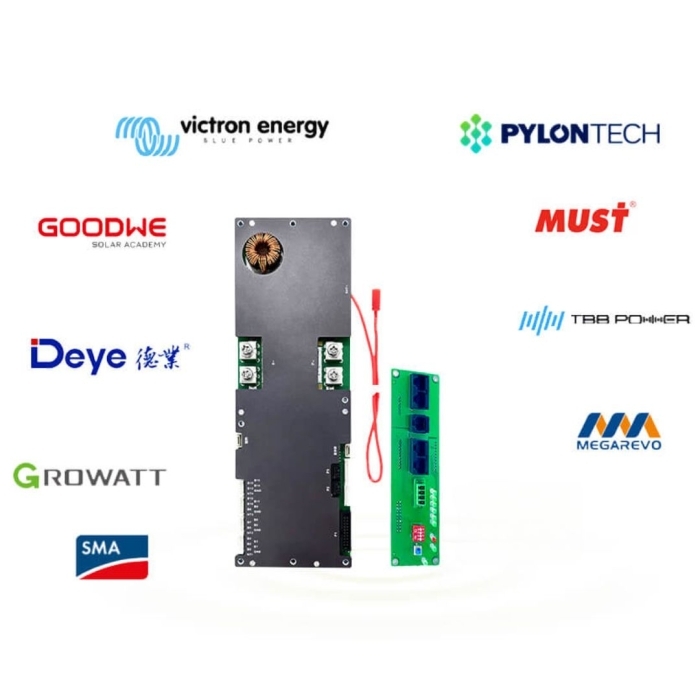

  • Widely compatible with brands such as GOODWE, Pylontech, Deye, MUST, Victrol, TBB, MEGAREVO, etc. (can be directly used for communication with the inverter)



Technical specifications:

  • Number of strings (Li-Ion): 7S-16S
  • Number of strings (LTO): 16S
  • Number of strings (LiFePO4): 7S-16S
  • Active balancing: YES
  • Balancing current: 2A
  • Conductive resistance: 0.35 mΩ
  • Continuous charging current: 200A
  • Continuous discharging current: 200A
  • Maximum discharge current: 400A
  • Voltage sensing accuracy: ±3mV
  • Operating power consumption: 1100 mW
  • Operating temperature: -30~70℃
  • Bluetooth function: support for Android and IOS phones
  • Model: JK-PB2A16S-20P
  • Size: 300*100*24mm

JIKONG

Features

Chemical composition
LTO
Li-Ion
LiFePO4
Connectivity
CAN2.0/RS232/RS485
Smart Bluetooth
Dimensions including installation (W × H × D)
Number of strings (categorically)
8~16S
Package weight
1.00 kg

Specific References

EAN13
8595210300542

Download

Invertor compatibility

Overview of the Jikong BMS-PB series communication protocol inverter range

Download (484.05KB)

JK BMS Manual

Download (2.05MB)
