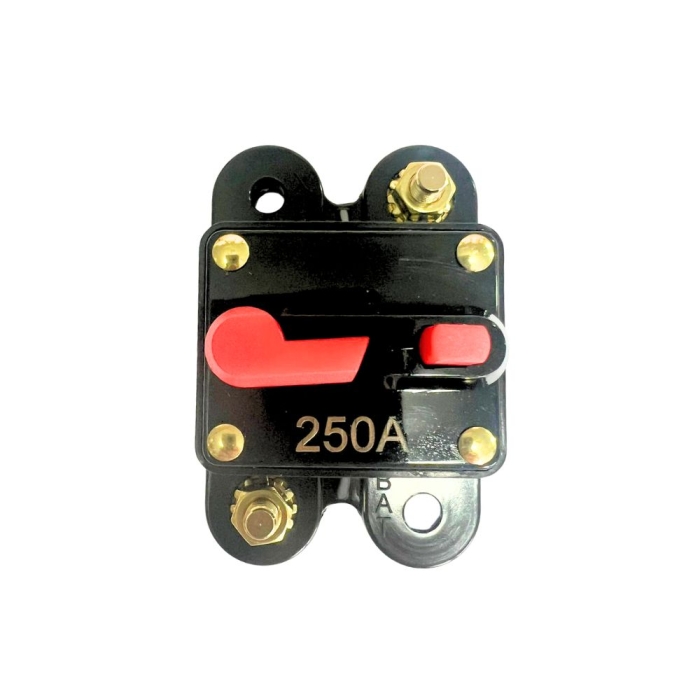

Battery DC semi-automatic fuse 250A
FUSE250A
Battery DC fuse 250A suitable for up to 80V DC systems.
Battery DC fuse 80V 250A from Selittel
This high quality DC fuse is designed for reliable protection of DC circuits in battery systems, photovoltaic installations, vehicles, material handling equipment (forklifts, platforms), UPS and charging equipment, and other applications where overload and short circuit protection is required. Its robust design and specific characteristics make it ideal for protecting batteries and voltage converters.
- Type: MEGA fuse (semi-automatic, requires manual replacement after circuit break)
- Terminal material: Copper / Zinc alloy, nickel plated (for optimum conductivity and corrosion resistance)
- Mounting hole spacing: 50.8 mm (standard spacing for MEGA fuses)
- High interrupting capability: Up to 1000A@80VDC
- Standards: ISO8820-5/UL248
Technical Specifications:
-
- ◾ Rated voltage: 80VDC
- ◾ Operating temperature range: -40℃~125℃
- ◾ Current: 250A
- ◾ Tightening torque: 8-12Nm W/M8
Test characteristics (at 250A):
100% (200A): Minimum 4 hours (will not break)
135% (270A): Within 120 seconds
200% (400A): Up to 15 seconds
350% (700A): Up to 0.3 seconds
600% (1200A): Up to 0.1 seconds
Features
- Rated voltage (V)
- 80V
- Rated current
- 250A
- Current
- DC (direct current)
- Package weight
- 0.01 kg
Specific References
- EAN13
- 8595210300351
