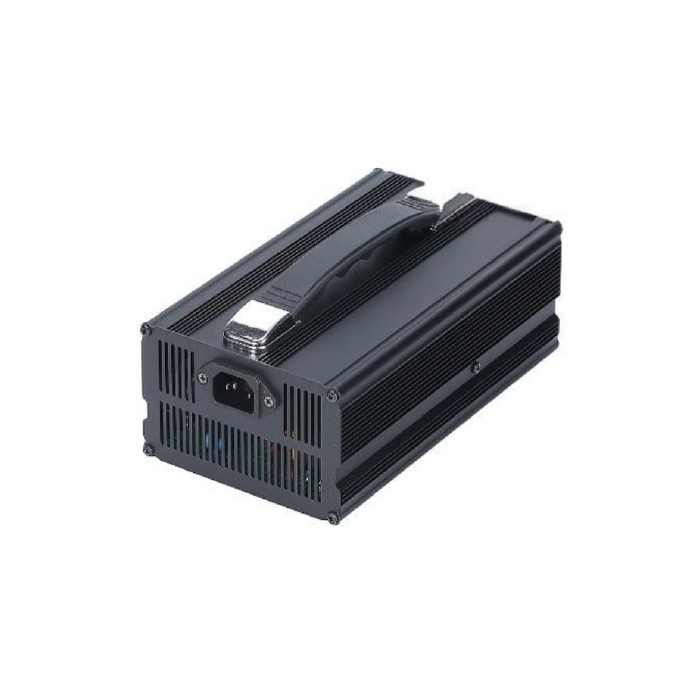

Battery charger 230V / 10A 72V
DSTCHRG0272
Device designed for charging LiFePO4 20S batteries.
Technical Specifications
- Battery type: LiFePO4 20S
- Operating voltage: 100 V ~ 240 V @ 50 Hz ~ 60 Hz
- Charging voltage: 72 V
- Maximum current: 10 A
- Weight: 2 kg
- Material: aluminum
- Connector cable length: approx. 1.2 m
- Operating temperature range: -20 °C ~ 50 °C at relative humidity of 5 ~ 95%
- Dimensions (W × H × D): 220 × 120 × 70 mm
Device designed for charging LiFePO4 20S batteries.
The red clamp connects to the positive terminal of the battery, the black clamp to the negative terminal. When the batteries are fully charged, charging stops automatically.
LED indicators: LED = green > ready to charge or charging complete; red > charging.
If the battery polarity is reversed, the charger will be irreparably damaged.
Features
- Dimensions
- 220 × 120 × 70 mm
- Maximum current
- 10 A
- For battery type
- LiFePO4
- Operating voltage
- 72V
- Package weight
- 2.00 kg
Specific References
- EAN13
- 8595210332574
