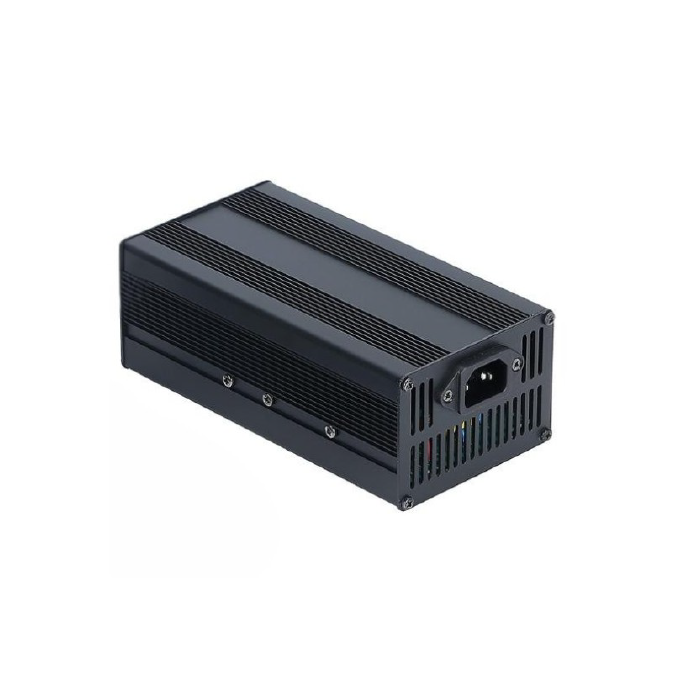

Battery charger 230V / 5A 72V
DSTCHRG02725
Device designed for charging Li-Ion battery.
Technical Specifications
- Battery Type: Li-Ion
- Operating Voltage: 100 V ~ 240 V @ 50 Hz ~ 60 Hz
- Charging Voltage: 72 V
- Disconnection Voltage: 57.4 V ± 0.05 V
- Maximum Current: 5 A
- Weight: 1.2 kg
- Material: Aluminium
- Connector cable length: approx. 1.2 m
- Operating temperature range: -20 °C ~ 40 °C at relative humidity up to 5 ~ 95%
- Dimensions (W × H × D): 173 × 90 × 50 mm
Device designed to charge a Li-Ion battery.
The red terminal connects to the plus battery, the black terminal connects to the minus battery. When the batteries are fully recharged, the charging is automatically terminated.
LED lights: LED = green > ready to charge or charging complete; red > charging.
If the battery polarity connection is reversed, the charger will be irreversibly damaged.
Features
- Dimensions
- 173 × 90 × 50 mm
- Maximum current
- 5 A
- For battery type
- Li-Ion
- Package weight
- 1.20 kg
Specific References
- EAN13
- 8595210332598
