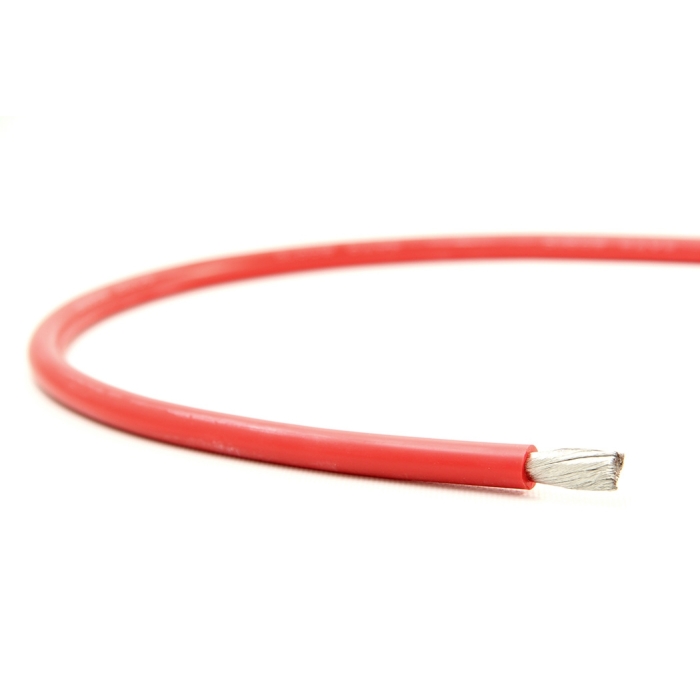

Cable 1/0AWG Ni-Cu fine stranded in silicone red
CABLE1/0AWGRED
1/0AWG cable made of nickel-plated copper, finely braided in red silicone sleeve. Price is for 1 meter.
Cable 1/0AWG nickel-copper fine stranded
It is designed for applications requiring high flexibility and resistance to extreme temperatures. Its tinned copper core is finely stranded and provides excellent conductivity as well as exceptional flexibility. The silicone insulation provides excellent protection against high and low temperatures in the specified range of -60 ~ 200 °C. Cables are sold by the meter so you can purchase the exact length you need for your project. It is ideal for battery packs, RC models, voltage converters, solar systems and other applications. Our range of AWG cables consists of different types – see table below.
For this cable we recommend a 50 mm² mesh cable gland.
❗Note: Cancellation of an order is not possible if the ordered material has already been modified (e.g. cut) in any way according to the customer's wishes.

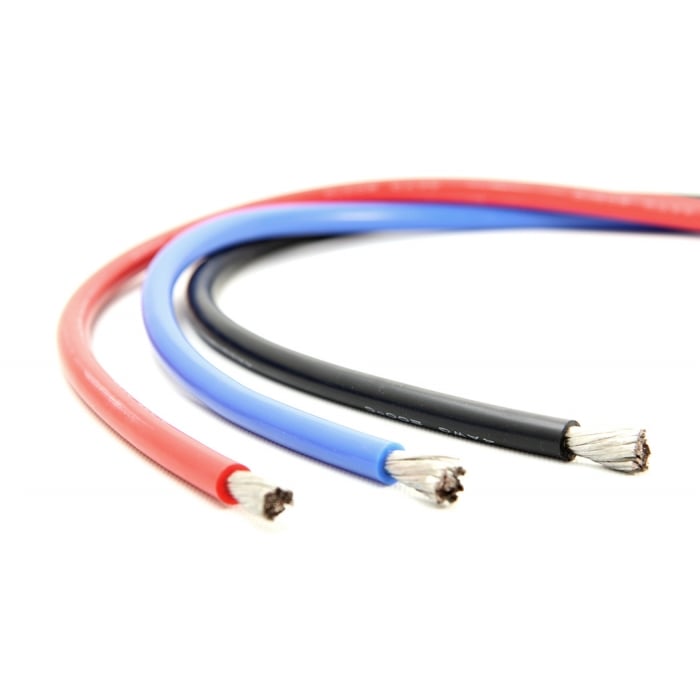

AWG cables: comparison table of parameters
Features
- Colour
- Red
- Operating temperature range
- -60 °C ~ 200 °C
- Made of
- Nickel-plated copper, silicone trim
- Maximum voltage range allowed
- up to 600 V
- Maximum current
- 300 A @ 20 °C
- Diameter
- 9,2 mm
- Cable cutting area
- 50mm / 1/0AWG
- Package weight
- 0.56 kg
Specific References
- EAN13
- 859521036930
No customer reviews for the moment.
1/0AWG cable made of nickel-plated copper, finely braided in red silicone sleeve. Price is for 1 meter.
