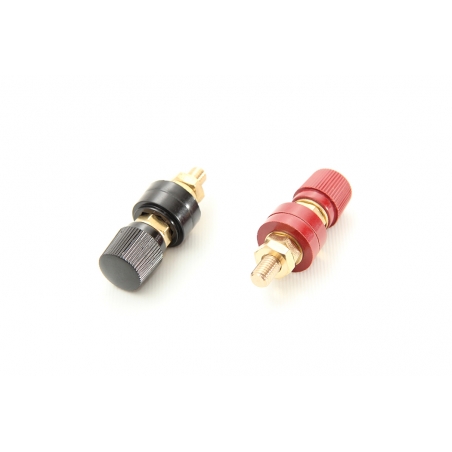

Passing Insulators (Red + Black) PI / P M8
PASSINSM8D
The electrical and mechanical features of insulators allow the insulated passage of the conductor through the boards of instrument cabinets or switchboards. They can be installed in demanding operating conditions.
Price: Kč239
Price excl. VAT: Kč198
Price excl. VAT: Kč198
Price history
Lowest price in the last 30 days before discount Kč239
Features
- Dimensions (W × H × D)
- 24 × 24 × 63 ~ 67 mm
- Weight
- 52 g (a piece)
- Colour
- black / red
- Thread axis length
- 50 mm
- Recommended maximum board thickness
- 3 mm
- Insulator installation diameter
- 12 mm
- Nominal voltage
- 1000 V
- Rated current
- 80 A
- Made of
- PC, brass
- Series
- PI/P
- Outer diameter of the insulator
- 24 mm
- Inner diameter of the insulator
- 8 mm
- Insulator height
- 8 mm
The electrical and mechanical features of insulators allow the insulated passage of the conductor through the boards of instrument cabinets or switchboards. They can be installed in demanding operating conditions.
