Automatic aerosol fire extinguisher for electrical switchgear. A compact, maintenance-free solution certified to EN 15276.

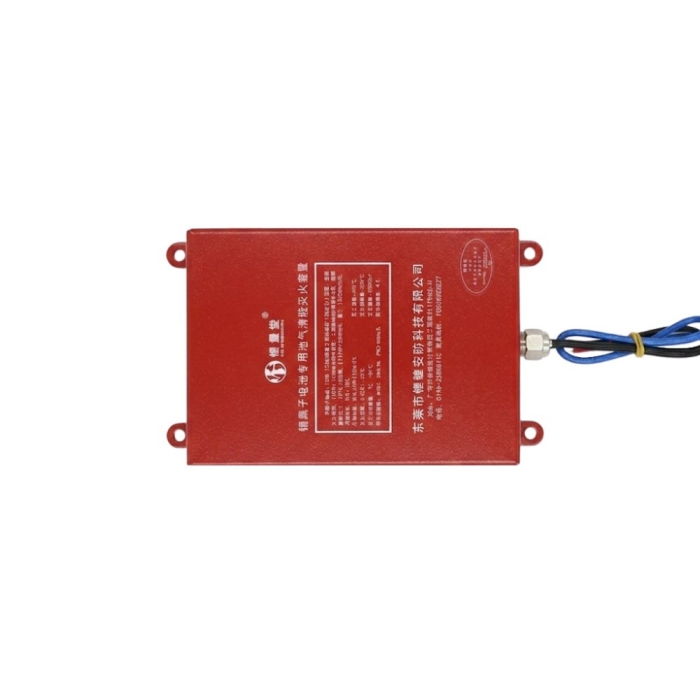

Aerosol fire extinguishing device QRR0.15G/S-MC-FA
FIREBOX150
Automatic aerosol fire suppression system for lithium batteries. 150 g of extinguishing agent for local fire suppression in enclosed spaces up to 0.75 m³. Compact, maintenance-free, and highly effective fire protection.
Automatic aerosol fire suppression system for battery rooms
A highly effective aerosol fire suppression system designed specifically for localized fire suppression in small enclosed spaces up to 0.75 m³. This compact and maintenance-free device is ideal for installation in battery assemblies, electrical switchboards, or charging stations. Thanks to advanced S-type aerosol technology, it provides fast, safe, and environmentally friendly fire protection.
- Targeted protection: Designed for extinguishing spaces up to 0.75 m³ in volume.
- Compact and maintenance-free: The system requires no piping or regular technical inspections.
- Gentle on technology: Effective extinguishing without toxic residues or corrosion, safe for electronics.
- Flexible activation: Supports both electrical triggering and thermal activation via a heat-sensitive wire.
- High durability: Design certified for demanding operating environments with temperatures ranging from -45 °C to +90 °C.
- Service life: 10-year guaranteed service life with no maintenance required.
Principle of fire suppression activation
The device operates on the principle of a controlled chemical reaction of solids, which produces a highly effective extinguishing aerosol. Activation occurs fully automatically and independently of an external power supply:
- Electrical activation: Via an external signal from a fire detector or control unit (current ≥400 mA).
- Thermal activation:Automatically upon reaching a critical ambient temperature (175 °C ±15 °C) via an integrated temperature-sensitive sensor/wire.
Applications for the aerosol fire suppression system
Thanks to its parameters, it is ideal for installation in critical systems where a conventional fire extinguisher would be impractical or dangerous:
- Energy: Batteries, energy storage systems (ESS), solar inverters, and charging stations.
- Electrical installations: Electrical switchboards, control panels, and machine control units.
- IT infrastructure: Server racks, communication cabinets, and data centers.
- Industry and transportation: Engine compartments, robotic workstations, CNC machines, and cable trays.
Specific References
- EAN13
- 8595210301006
