RQQD-01 Aerosol Fire Suppression System for Switchgear
FIREBOXDIN

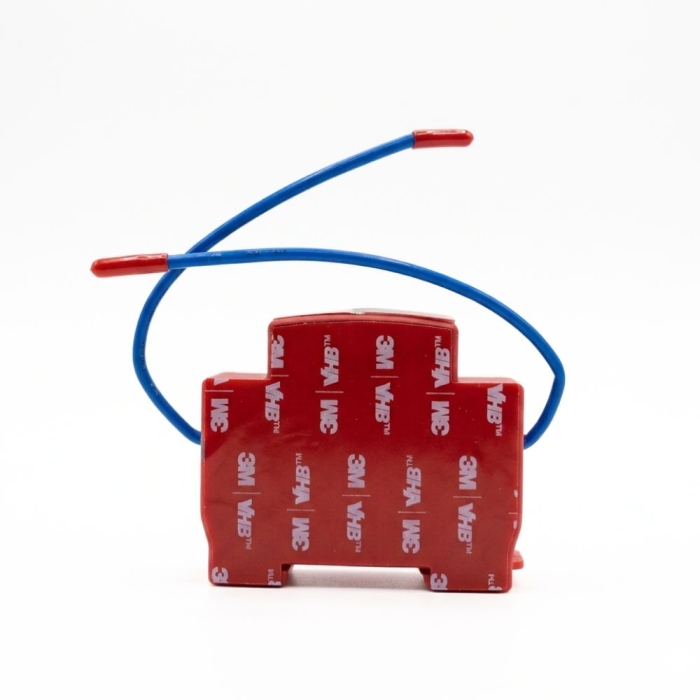

Automatic aerosol fire extinguisher for electrical switchgear. A compact, maintenance-free solution certified to EN 15276.
Automatic Fire Suppression System for Electrical Switchgear
Ensure uncompromising fire safety for your technology. The RQQD-01 is an advanced fire suppression system designed for automatic fire protection of switchgear. Thanks to modern aerosol fire suppression technology, the system can suppress a developing fire at its very onset, without the need for operator intervention or an electrical power supply.
- Maximum effectiveness: A suppression density of 100 g/m³ reliably interrupts the chain reaction of combustion directly at the point of origin.
- Certified safety: Fully compliant with European standards EN 15276-1:2019 and EN 15276-2:2019.
- Maintenance-free operation: This is a non-pressurized device. It does not require regular inspections of pressure vessels or refilling of extinguishing agent.
- Hassle-free installation: Compact dimensions, low weight, and easy mounting directly in control cabinets on DIN rails.
- Gentle on technology: The solid chemical mixture only transforms into an extinguishing aerosol upon activation. It leaves no corrosive residues that could damage sensitive electronics.
- Extreme durability: Designed for operation in a temperature range of -50 ℃ to +90 ℃
Extinguishing activation principle
The device operates on the principle of a chemical reaction of solid substances. Activation occurs completely automatically:
- Upon direct contact with an open flame.
- Upon reaching a critical temperature of 170°C (thermal activation).
Applications for the aerosol fire suppression system
Thanks to its parameters, it is ideal for installation in critical systems where a conventional fire extinguisher would be impractical or dangerous:
- Electrical installations: Switchgear
Specific References
- EAN13
- 8595210300962
