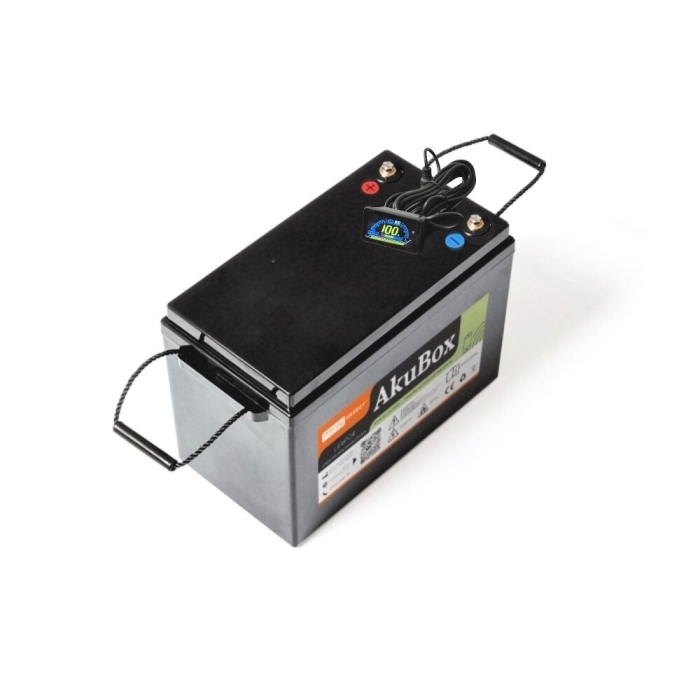

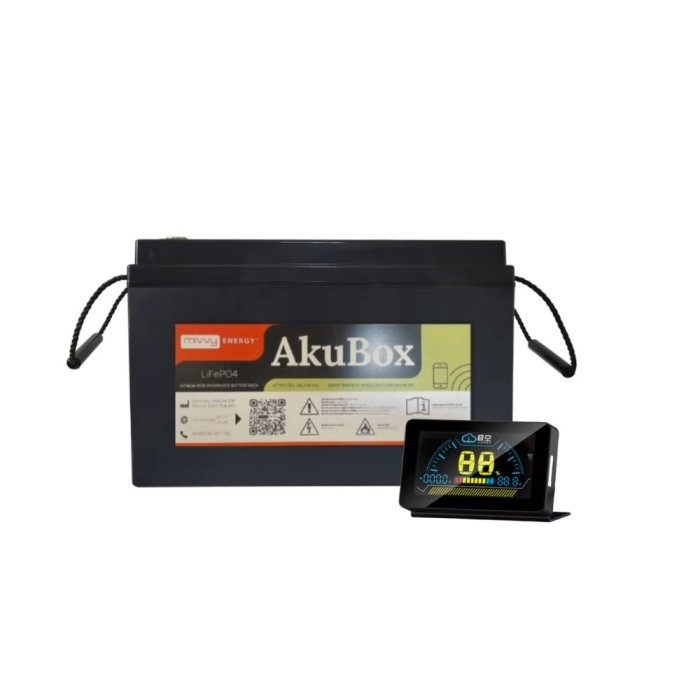

Reliable AkuBoxes® mivvyENERGY

Get a reliable power source for your projects with our compact lithium batteries in the AkuBox®. These battery packs have high capacity and long life. Whether you are creating electronic devices or setting out to build solar systems, our batteries will always provide you with plenty of power.

Default password for BMS connectivity: 1234
! The built-in BMS cannot be reconfigured, only the battery status can be monitored !



Technical specifications:

  • Nominal capacity: 280Ah
  • Usable capacity: 224Ah
  • Nominal voltage: 12.8V
  • Energy: 3.58kWh
  • Connectivity: Smart Bluetooth
  • Terminal charging voltage: 13.70V
  • End discharge voltage or reaching 0% SoC: 12.6V
  • Maximum allowable voltage range 100% DoD (BMS disconnects the battery if exceeded): 12V~14.2V
  • Active baling: Yes
  • Maximum continuous charging current: 200A
  • Maximum continuous discharging current: 200A
  • Charge/discharge cycle efficiency: 97%
  • Degree of protection: IP21
  • Number of cycles/lifetime: 4000 @ 80% DoD
  • Cell chemistry: LiFePO4
  • Operating temperature (recommended for full cycling life): 10°C~25°C
  • Operating temperature: 2°C~45°C

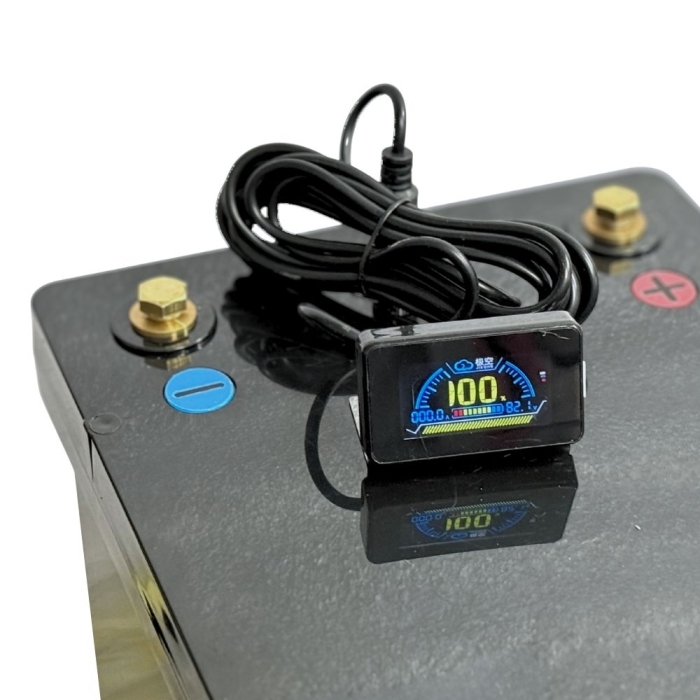

  • Cable length to LCD: 3m


Package includes: AkuBox


  • Multiple AcuBoxes cannot be connected in series
  • From the factory, the BMS is set to specific parameters. Any unprofessional intervention or alteration of the set parameters will result in permanent damage to the product and void the warranty.

mivvy ENERGY

Features

Connectivity
Smart Bluetooth
Package weight
24.00 kg

Specific References

EAN13
8595210332451

Download

AkuBox manual

AkuBox manual

Download (353.28KB)

Prohlášení o shodě Akubox

Download (258.97KB)
