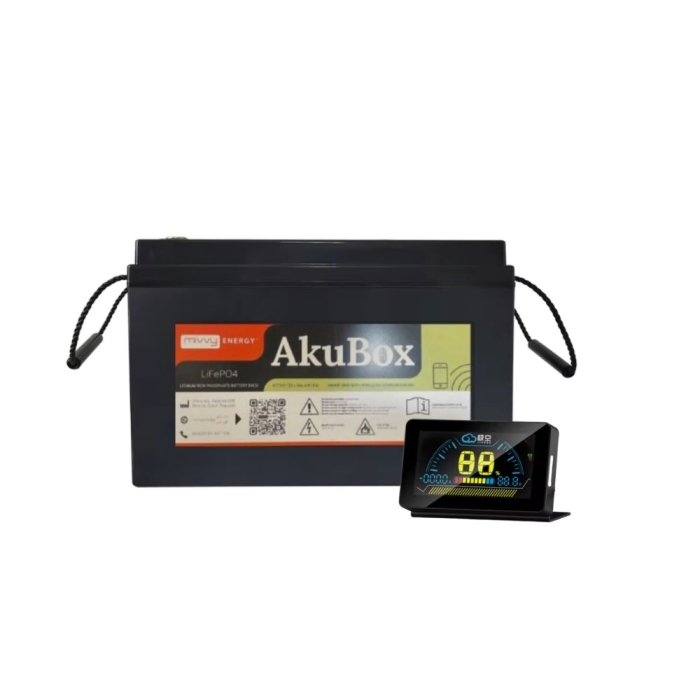

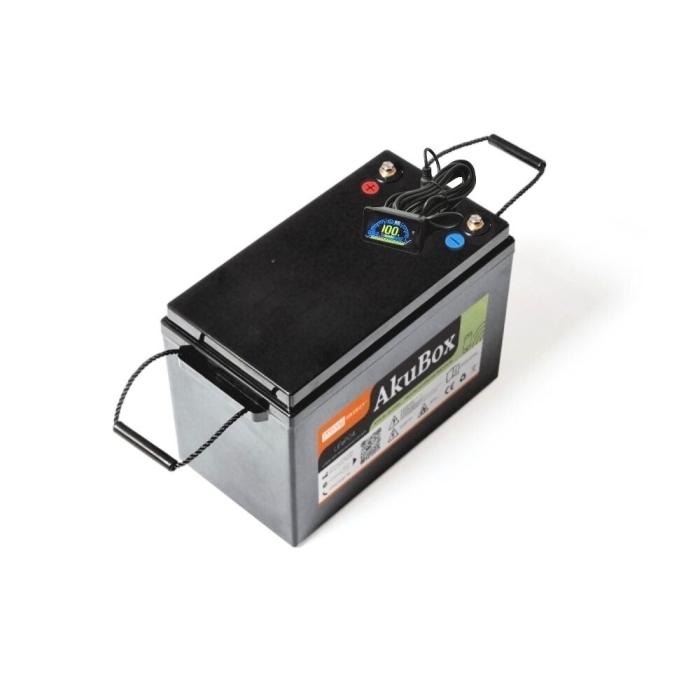

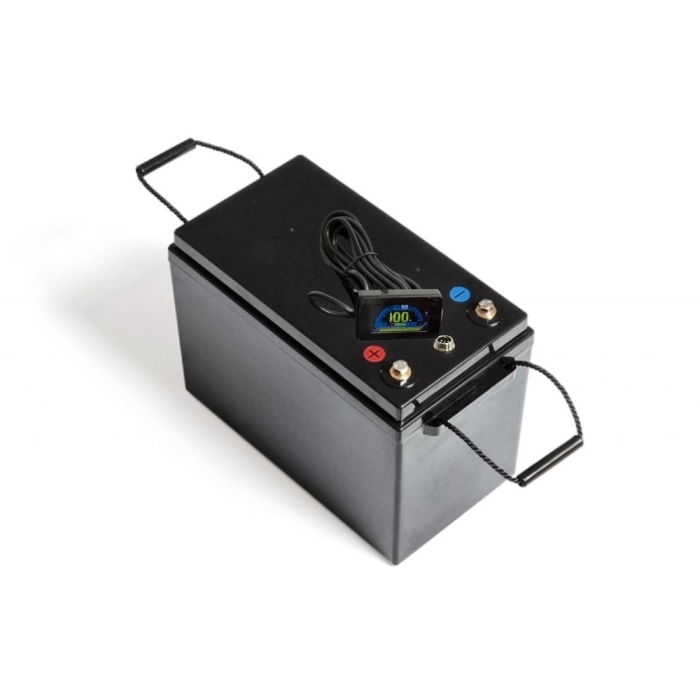

Reliable mivvyENERGY AkuBoxes®

Get a reliable power source for your projects with our compact lithium batteries in the AkuBox®. These battery packs offer high capacity and a long service life. Whether you’re building electronic devices or constructing solar systems, our batteries will always provide you with plenty of power.

Default password for BMS connectivity: 1234
! The built-in BMS cannot be reconfigured; only the battery status can be monitored !



Technical specifications:

  • Nominal energy: 7.16kWh
  • Nominal voltage: 25.60V
  • Cut-off charging voltage: 28V
  • Cut-off discharging voltage or 0% SOC: 25.20V
  • Maximum allowed voltage range at 100% DoD. If exceeded, the BMS disconnects the battery: 24V-28.80V
  • Nominal capacity: 280Ah
  • Maximum charging current (continuous): 100A
  • Maximum discharge current (continuous): 200A
  • Maximum discharge current (instantaneous): 350A (3 sec.)
  • Active current balancing: Yes 2A
  • The battery shuts down when the maximum instantaneous current is exceeded
  • Charge/discharge cycle efficiency: 97%
  • Service life: 4000 cycles at 70% DoD
  • Protection rating: IP21
  • Weight: 49 kg
  • Dimensions W x H x D: 640×245×220mm
  • Cell composition: LIFEPO4
  • Charging operating temperature: 0°C~45°C
  • Discharging operating temperature: -20~45°C
  • The battery is designed for indoor installation, and the protective BMS will shut it down during charging if the temperature drops below 0 degrees Celsius.

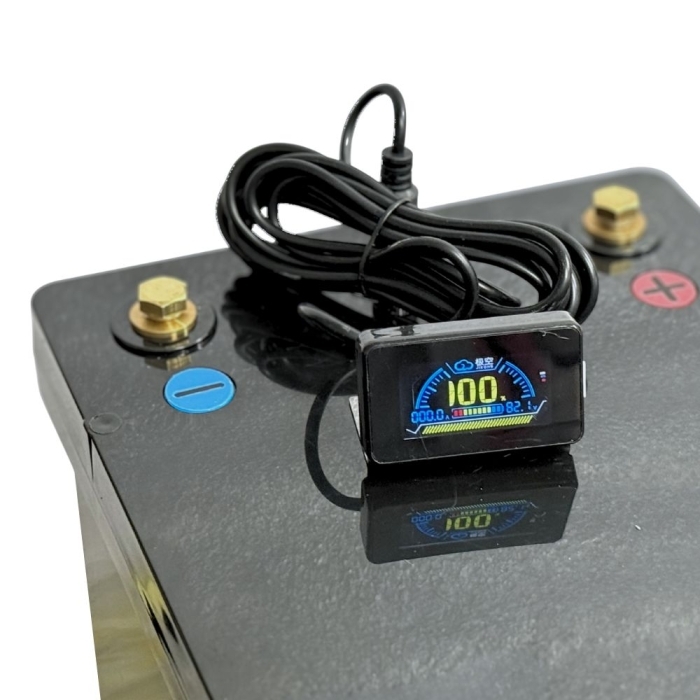

  • LCD cable length: 3m
  • Assembled from Grade A+ cells



Package includes: AkuBox


    • Multiple AkuBoxes cannot be connected in series
    • The BMS is factory-set to specific parameters. Any unauthorized intervention or modification of the set parameters will result in permanent damage to the product and void the warranty.

mivvy ENERGY

Features

Connectivity
Smart Bluetooth
Package weight
52.00 kg

Specific References

EAN13
8595210332468

Download

AkuBox manual

AkuBox manual

Download (353.28KB)

Prohlášení o shodě Akubox

Download (294.15KB)
