Battery under the motorhome seat ● AkuBox® made of LiFePO4 battery cells with a voltage of 12V, a capacity of 345Ah, and a lifespan of >8,000 cycles ● Integrated Smart BMS with Bluetooth communication ● Integrated heating foils for charging in sub-zero temperatures
Assembled by us
* Product photo is for illustration purposes
Read more: how pre-orders work
The AkuBox® is designed as a battery for motorhomes. With dimensions of 350 x 280 x 185 mm, it is ideal as a battery under the driver’s or passenger’s seat in vehicles such as the Mercedes-Benz Sprinter, Fiat Ducato, Peugeot Boxer, Citroën Jumper, Iveco Daily, and VW Transporter (under-seat compartments may vary in size depending on the model/year of the vehicle; please measure the dimensions of your vehicle).

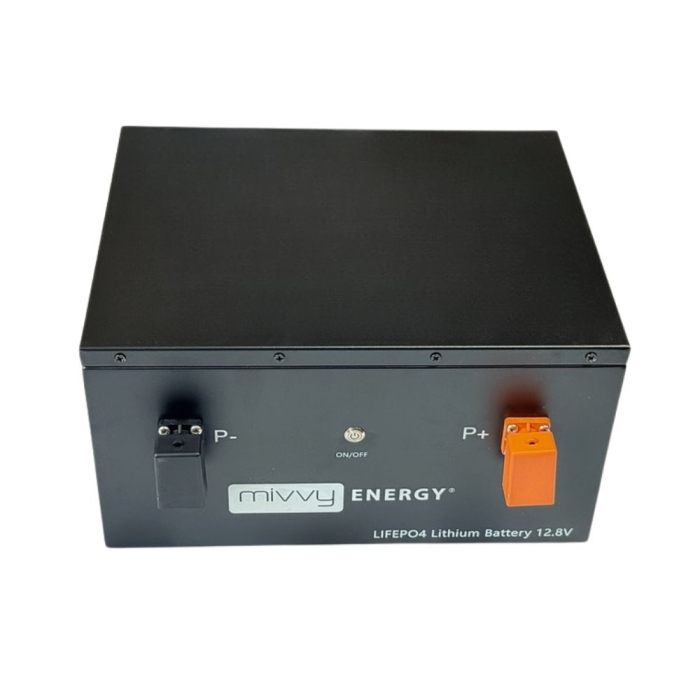

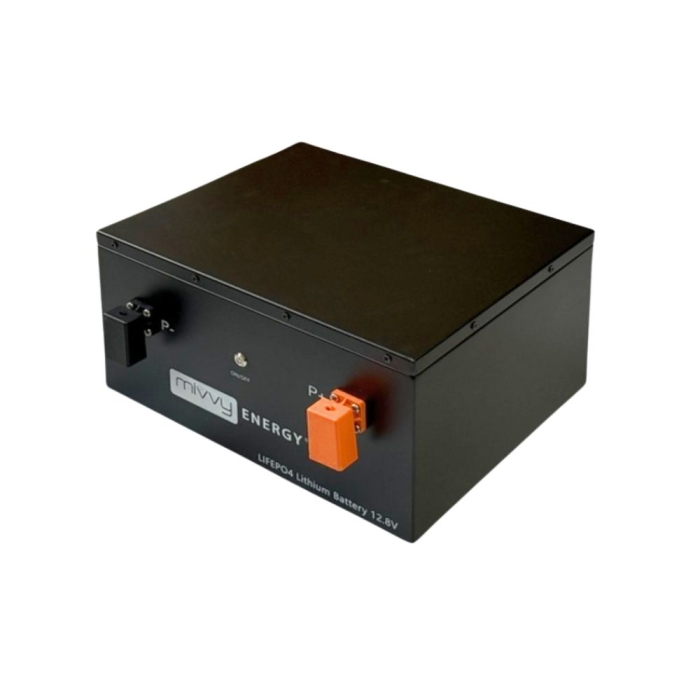

This AkuBox® is assembled from high-performance LiFePO4 cells, which, along with an intelligent protection system, are housed in a sturdy box made of black painted steel. The front panel features an ON/OFF button and terminals for connecting wires with M6 cable lugs. The integrated Smart BMS provides Bluetooth battery status monitoring via a mobile app, which you can download using the QR codes below.
Nominal capacity: 345Ah
Nominal voltage: 12.8V
Energy: 4.41 kWh
Connectivity: Bluetooth mobile app
Final charging voltage: 14.00 V
Float voltage: 13.52V
Final discharge voltage or 0% SOC: 12.60V
Maximum allowed voltage range at 100% DoD; if exceeded, the BMS disconnects the battery: 12V–14.40V
Maximum charging current (continuous): 85A
Maximum discharge current (continuous): 120A
Active balancing: Yes
Balance voltage: from 13.72V
Connection: M6 cable lug
Charge/discharge cycle efficiency: 97%
Lifespan: 8,000 cycles at 70% DoD
Protection rating: IP24
Chemical composition of cells: LiFePO4
Operating temperature: up to+45°C
Charging: No restrictions at low temperatures. Integrated heating foils ensure automatic battery heating
Assembled from Grade A+ cells
Features
Specific References
