Yellow epoxy isolation plate with dimensions 170x200x0,5mm

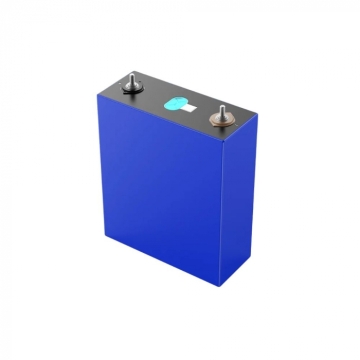

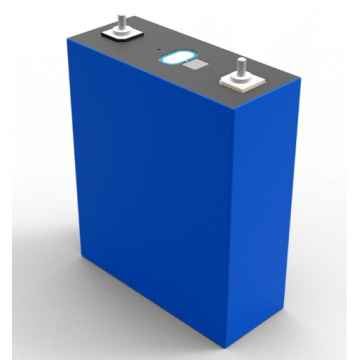

LiFePO4 REPT 3.2V 345Ah Grade A+ Cells (R24/6-VI26)
P-LIFEPO4345R

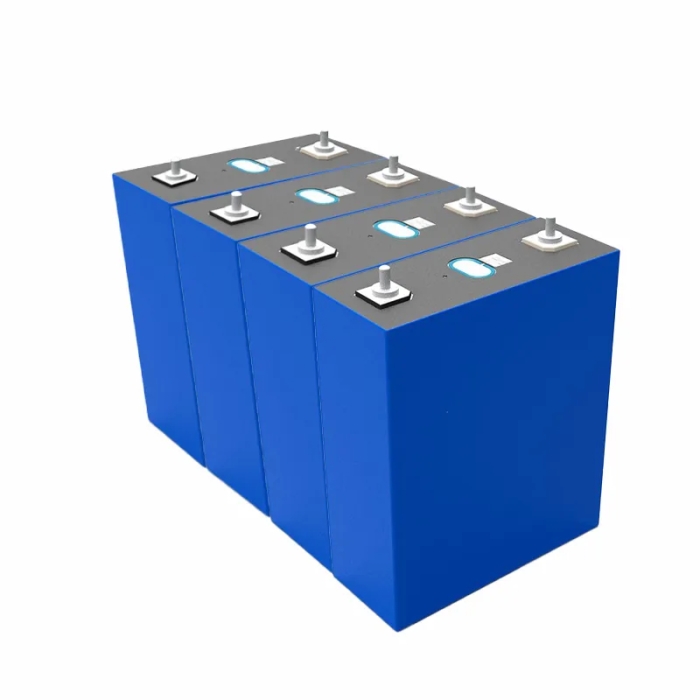

Prismatic LiFePO4 traction battery ● Capacity: 345 Ah ● Grade A+ quality ● Advanced safety technology ● Sold only in sets of 4
Lithium Cells for Long-Lasting Power
High-performance lithium cells that deliver long-lasting power for your projects. These lightweight and compact batteries offer excellent energy density, fast charging, and a long service life. With our lithium cells, you can easily power your devices with confidence in their long-term reliability. Tackle your projects with the assurance that power will always be at your fingertips!
Technical Specifications:
- Batch: 2024/2026
- Rated capacity:345 Ah
- Rated voltage:3.2 V
- Energy: 1104Wh
- Operating voltage range:2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current:86 A / 0.25C
- Maximum continuous discharge current:86 A / 0.25C
- Self-discharge rate:≤ 3% / month
- Internal resistance: 0.3 mΩ ± 0.05 mΩ
- Cycle life / service life:8000, 70% SOH @ 25 °C
- Operating temperature / charging:0 °C ~ 60 °C
- Operating temperature / discharging: -20 °C ~ 60 °C
- Storage temperature:-30 °C ~ 60 °C (long-term 0 °C ~ 35 °C)
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 314 Ah
- Energy (kWh)
- 1104 Wh
- Rated voltage (V)
- 3,2 V
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- 174 × 205 × 72 mm
- Case made of
- aluminium
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 23.04 kg
Specific References
- EAN13
- 8595210300504
