The Al-Cu washer prevents the transition resistance and temperature of the aluminum-copper joints from increasing. Price is per piece.

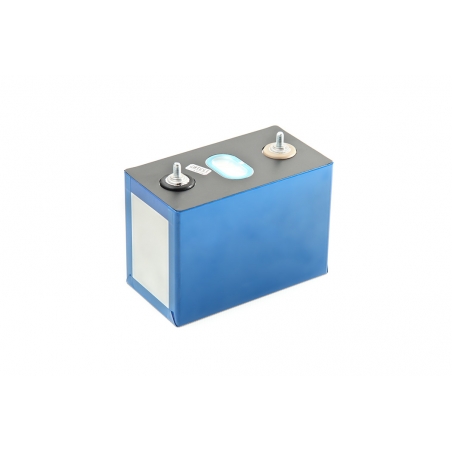

Cell Li-Ion 150Ah CATL 3,7V
LIION150CATL
Prismatic cell traction Li-Ion battery with 150Ah and 3.7V capacity for universal use.
Lithium cells for long-lasting performance
Powerful lithium cells that deliver long-lasting performance for your projects. These lightweight and compact batteries offer excellent energy density and fast charging with long life. With our lithium cells, you'll be able to power your equipment with ease, and with confidence in their long-term reliability. Take on projects with the confidence that power will always be on hand!
Notice: Connection hardware (busbars) is not included in the basic package. If you are building a battery pack, please remember to check the Extra Options – BUSBARS box above.
Technical specifications:
- Rated capacity: 150 Ah
- Rated voltage: 3.7 V
- Energy: 555 Wh
- Operating voltage range: 2.8 V ~ 4.3 V
- Standard charging voltage: 4.3 V
- Standard charging current: 50 A
- Charging current (Fast Charging): 180 A
- Maximum continuous discharge current: 300 A
- Standard discharge current: 50 A
- Self-discharge rate: ≤ 4%/month
- Internal resistance: ≤ 0.37 mΩ
- Number of cycles/lifetime: > 1500
- Operating temperature/charging: -20 °C ~ 55 °C
- Operating temperature/discharging: -30 °C ~ 55 °C
- Storage temperature: -30 °C ~ 45 °C
Features
- Chemical composition
- Li-Ion
- Rated capacity (Ah)
- 150
- Energy (kWh)
- 555 Wh
- Rated voltage (V)
- 3,7
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- 148 × 102 × 79 mm
- Case made of
- aluminium
- Model
- Prismatic
- Package weight
- 2.70 kg
Specific References
- EAN13
- 8595210365299
