Black ABS plastic box for battery set assembling.

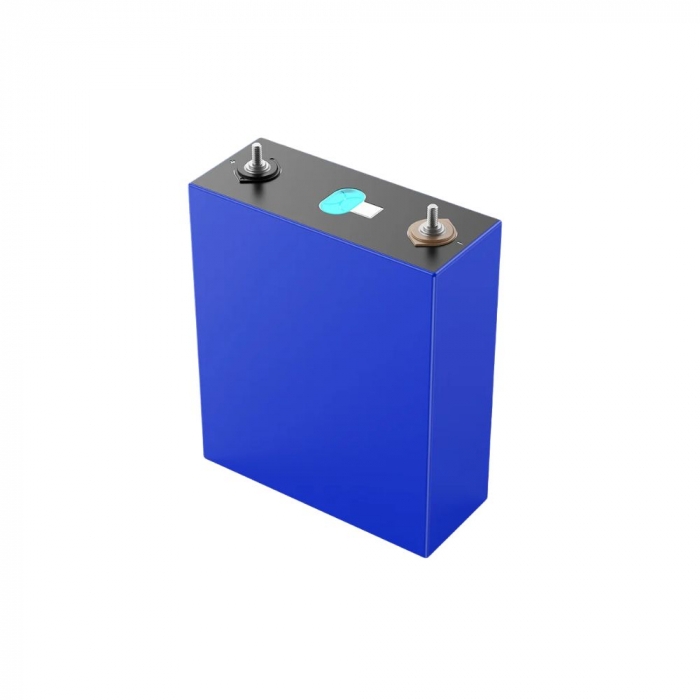

Cells LiFePO4 Hithium 3.2V 280Ah Grade A+ (R25-IV26)
P-LIFEPO4280H1

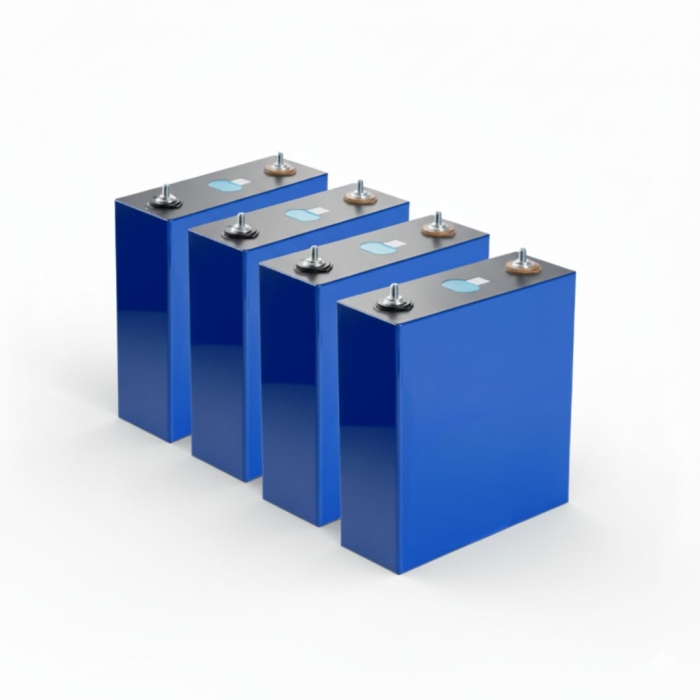

New batch of HITHIUM 280Ah 3.2V cells ● Prismatic traction batteries for heavy-duty use ● LiFePO4 chemistry with exceptional lifespan ● Grade A+ quality ● Sold only in sets of 4
Key Benefits of the HITHIUM 280Ah 3.2V Battery
- Long service life: Thanks to their advanced design, the cells achieve a service life of up to 8,000 cycles at 25 °C, ensuring maintenance-free operation for many years.
- High performance: With a continuous discharge current of up to 280 A (1C), they provide sufficient power even for energy-intensive applications.
- Operational stability: LiFePO4chemistry combined with HITHIUM’s precision manufacturing guarantees excellent thermal resistance and reliability in demanding conditions.
- Grade A+ quality: The cells come from a fresh 2025 production batch. The A+ rating guarantees minimal variations in internal resistance and capacity, making it easier to assemble a balanced battery.
- Versatility: Anextended discharge temperature range (-30 °C to 60 °C) allows the system to be used even in more demanding climatic conditions.
Guarantee of Cell Origin
Each cell is equipped with an original manufacturer QR code. The codes are neither sanded off nor covered, allowing for unambiguous verification of origin, date of manufacture, and compliance with the manufacturer’s technical data sheet. The cells are brand new, straight from the production line.
Note: Connectors are not included in the basic package. If you are building a battery pack, be sure to check the appropriate box in the Extra Options – CONNECTORS section above.
Technical Specifications:
- Batch: 2025
- Nominal capacity: 280 Ah
- Nominal voltage: 3.2 V
- Energy: 896 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current: 140 A / 0.5C
- Maximum continuous discharge current: 280 A / 1C
- Self-discharge rate: ≤ 3% / month
- Internal resistance: ≤ 0.25 mΩ
- Number of cycles / service life: 8000 @ 25 °C
- Operating temperature / charging: 0°C ~ 60 °C
- Operating temperature / discharging: -30 °C ~ 60 °C
- Storage temperature: -20°C ~ 45 °C (long-term 0°C ~ 35 °C)
- Quality grade: A+
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 280Ah
- Rated voltage (V)
- 3,2V
- Clamp and tightening torque
- M6 / 6 Nm

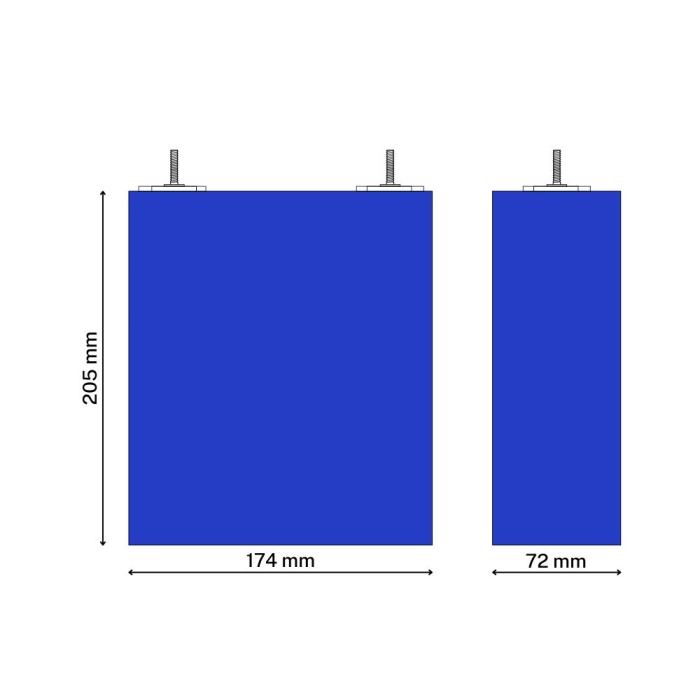

- Dimensions
- 205 × 174 × 72 mm
- Case made of
- aluminium
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 21.72 kg
Specific References
- EAN13
- 8595210300511
