Yellow epoxy isolation plate with dimensions 170x200x0,5mm

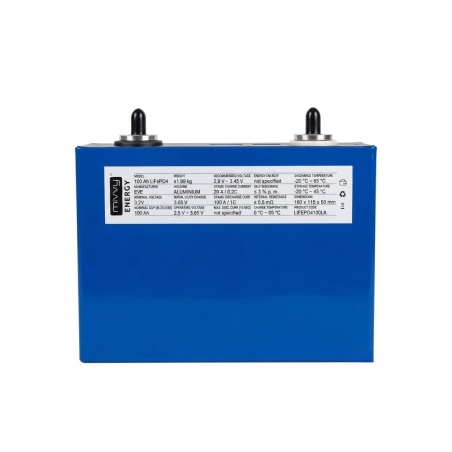

LiFePO4 100Ah 3.2V EVE Grade A+ Cell (R26-VI26)
LIFEPO4100LA
New batch of EVE 100Ah 3.2V cells ● Prismatic traction battery ● LiFePO4 chemistry with high stability ● Grade A+ quality
Lithium Cells for Long-Lasting Performance
High-performance lithium cells that deliver long-lasting power for your projects. These lightweight and compact batteries offer excellent energy density, fast charging, and a long service life. With our lithium cells, you can easily power your devices, confident in their long-term reliability. Tackle your projects with the assurance that power will always be at your fingertips!
Note: Connectors are not included in the basic package. If you’re building a battery pack, be sure to check the appropriate box in the “Extra Options – Connectors” section above.
Technical Specifications:
- Batch: 2026
- Rated capacity: 100 Ah
- Rated voltage: 3.2 V
- Energy: 320 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Maximum charging current: 100A / 1C
- Maximum discharge current: 100A / 1C
- Internal resistance: 0.5 mΩ
- Number of cycles / lifespan: 5,000
- Operating temperature / charging: 0 °C ~ 65 °C
- Operating temperature / discharging: -20 °C ~ 65 °C
- Storage temperature: -20°C ~ 45 °C (long-term 0°C ~ 35 °C)
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 100
- Energy (kWh)
- Rated voltage (V)
- 3,2
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- Case made of
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 2.20 kg
Specific References
- EAN13
- 8595210365503
