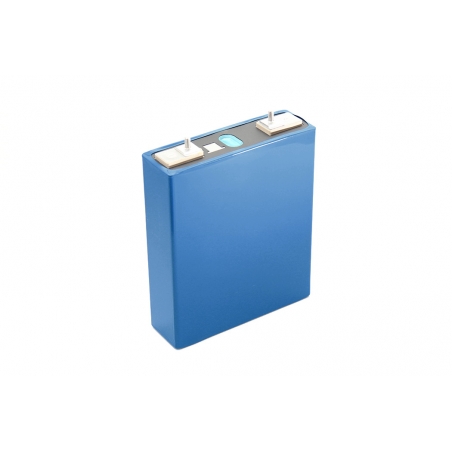

Cell LiFePO4 230Ah 3.2V CALB
LIFEPO4230
Prismatic cell traction LiFePO4 battery with 230Ah and 3.2V capacity for universal use.
Lithium cells for long-lasting performance
Powerful lithium cells that deliver long-lasting performance for your projects. These lightweight and compact batteries offer excellent energy density and fast charging with long life. With our lithium cells, you'll be able to power your equipment with ease, and with confidence in their long-term reliability. Take on projects with the confidence that power will always be on hand!
Features
- Rated capacity (Ah)
- 230
- Energy (kWh)
- 736 Wh
- Rated voltage (V)
- 3,2 V
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- 174 × 207 × 54 mm
- Case made of
- aluminium
- Package weight
- 4.10 kg
Specific References
- EAN13
- 859521036430
- Nominal capacity: 230 Ah (0.5C / +25 °C)
- Nominal voltage: 3.2 V
- Energy: 736 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current: 115 A / 0.5C
- Maximum continuous discharge current: 230 A / 1C
- Maximum discharge current (60 seconds): 460 A / 2C
- Self-discharge rate: ≤3%/month
- Internal resistance: ≤ 0.4 mΩ
- Number of cycles / lifetime: >4000
- Operating temperature / charging: 0 °C ~ 55 °C
- Operating temperature / discharging: -30 °C ~ 55 °C
- Storage temperature: -30 °C ~ 60 °C
Package included: 1× lithium cell
Are you thinking of building an accumulator? You will need these bus bars.
