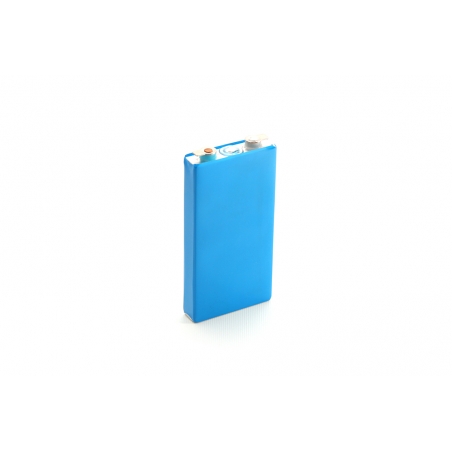

Cell Li-Ion 14Ah 3.65V PHYLION
LIION14
Prismatic cell traction Li-Ion battery with a capacity of 14Ah and 3.65V for universal use.
Rating
Lithium cells for long-lasting performance
Powerful lithium cells that deliver long-lasting performance for your projects. These lightweight and compact batteries offer excellent energy density and fast charging with long life. With our lithium cells, you'll be able to power your equipment with ease, and with confidence in their long-term reliability. Take on projects with the confidence that power will always be on hand!
Technical specifications:
- Rated capacity: 14 Ah (1C / +25 °C)
- Rated voltage: 3.65 V
- Energy: 51 Wh
- Operating voltage range: 2.75 V ~ 4.2 V
- Maximum charging voltage: 4.20 V
- Standard charging current: 14 A / 1C
- Maximum continuous discharge current: 42 A / 3C
- Maximum discharge current: 70 A / 5C (5 seconds)
- Self-discharge rate: ≤ 3% / month
- Internal resistance: ≤ 3 mΩ
- Number of cycles / lifetime: > 1000
- Operating temperature / charging: 0 °C ~ 45 °C
- Operating temperature / discharging: -20 °C ~ 50 °C
- Storage temperature: -30 °C ~ 45 °C
Features
- Chemical composition
- Li-Ion
- Rated capacity (Ah)
- 14
- Energy (kWh)
- 51 Wh
- Rated voltage (V)
- 3,65
- Clamp and tightening torque
- No bolts
- Dimensions
- 66 × 133 × 18 mm
- Case made of
- aluminium
- Model
- Prismatic
- Package weight
- 0.32 kg
Specific References
- EAN13
- 8595210365015
Recenze byla napsána na Zboží.cz
Pro:
S články se pracuje krásně, za mě lepší nežli s články 1865, proto jsem si je koupil abych to vyzkoušel.
Proti:
Zápory zatím žádné
Recenze byla napsána na Zboží.cz
Pro:
Za ty peníze dobrej kup
Recenze byla napsána na Zboží.cz
Pro:
Cena a dostupnosť
Prismatic cell traction Li-Ion battery with a capacity of 14Ah and 3.65V for universal use.
