Prismatic LiFePO4 traction cell with a capacity of 314Ah 3.2V for universal use from EVE.

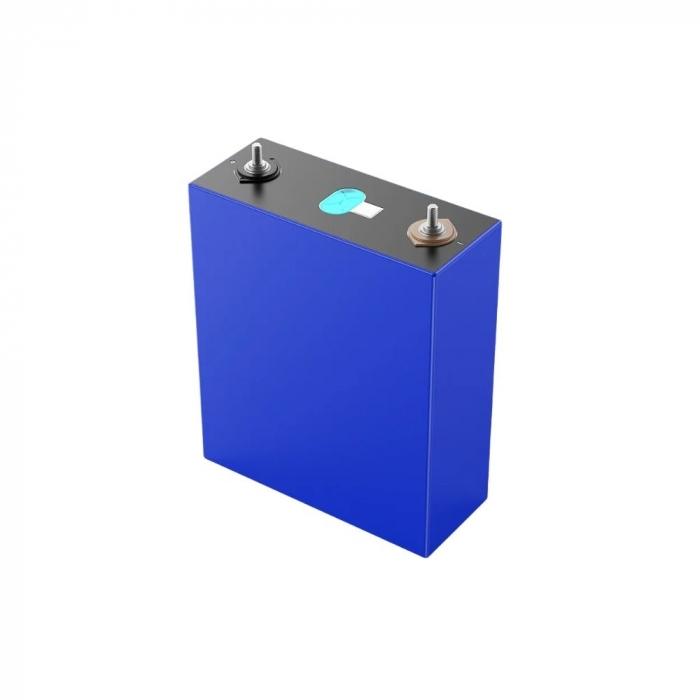

LiFePO4 REPT 3.2V 314Ah Grade A+
LIFEPO4314R
Prismatic LiFePO4 traction cell with a capacity of 314Ah 3.2V for universal use from REPT.
Lithium cells for long-lasting performance
Powerful lithium cells that deliver long-lasting performance for your projects. These lightweight and compact batteries offer excellent energy density and fast charging with long life. With our lithium cells, you'll be able to power your equipment with ease, and with confidence in their long-term reliability. Take on projects with the confidence that power will always be on hand!
Technical specifications:
- Rated capacity: 314 Ah
- Rated voltage: 3.2 V
- Energy: 1004.8 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current: 157 A / 0.5C
- Maximum continuous discharge current: 157 A / 0.5C
- Self-discharge rate: ≤ 3% / month
- Internal resistance: 0.18 mΩ ± 0.05 mΩ
- Cycle count / life: 8000, 70% SOH @ 25°C
- Operating temperature / charging: 0°C ~ 60°C
- Operating temperature / discharging: -20°C ~ 60°C
- Storage temperature: -30°C ~ 60°C (long term 0°C ~ 35°C)
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 314 Ah
- Energy (kWh)
- 1004,8 Wh
- Rated voltage (V)
- 3,2 V
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- 174 × 205 × 72 mm
- Case made of
- aluminium
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 5.76 kg
Specific References
- EAN13
- 8595210300504
