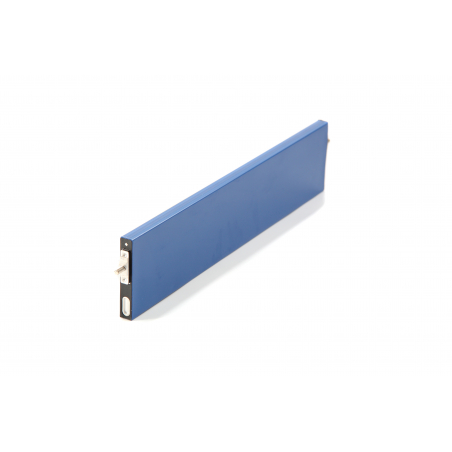

Cell LiFePO4 62Ah SVOLT 3,2V
LIFEPO462
Prismatic cell traction LiFePO4 battery with a capacity of 62Ah and 3.2V for universal use.
LiFePO4 battery cell SVOLT 62Ah
This 62Ah rechargeable battery cell from SVOLT uses LiFePO4 chemistry. It is designed for better performance and longer cycling life. It has a Class A rating as a product that meets all quality and safety requirements. The terminals of the cell are designed with M6 (10mm) screws.
Notice: Connection hardware (busbars) is not included in the basic package. If you are building a battery pack, please remember to check the Extra Options – BUSBARS box above.
Technical specifications:
- Rated capacity: ≥62Ah@1C
- Rated voltage: 3.2 V
- Max. Charging voltage: 3.65 V
- Operating voltage range: 2~3.65 V
- Max charging current: 62 A/1C
- Max continuous discharge current: 250 A/4 C
- Max discharge current (30 seconds): 520A /8.3C
- Internal resistance: ≤0.35~0.60mΩ
- Operating temperature (charging): -20~60℃
- Operating temperature (discharging): -35~60℃
- Cycle life: ≥2500 (80OH)
- Cell weight: 1165±20g
- Self-discharge rate: ≤2.5%/month
Package contents: 1x LiFePO4 cell
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 62
- Energy (kWh)
- 194 Wh
- Rated voltage (V)
- 3,2
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- 409 × 88 × 14,9 mm
- Case made of
- aluminium
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 2.80 kg
Specific References
- EAN13
- 8595210365336
