Yellow epoxy isolation plate with dimensions 170x200x0,5mm

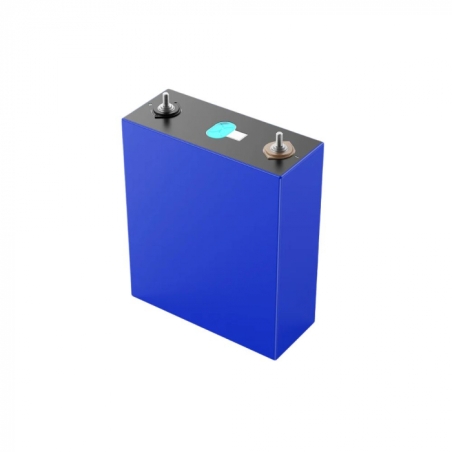

Cell LiFePO4 314Ah 3,2V EVE Grade A+
LIFEPO4314E
Prismatic LiFePO4 traction cell with a capacity of 314Ah 3.2V for universal use from EVE.
Lithium Cells for Long-Lasting Power
High-performance lithium cells that deliver long-lasting power for your projects. These lightweight and compact batteries offer excellent energy density, fast charging, and a long service life. With our lithium cells, you can easily power your devices with confidence in their long-term reliability. Get started on your projects with the confidence that power will always be at your fingertips!
Note: Connectors are not included in the basic package. If you are building a battery pack, be sure to check the appropriate box in the Extra Options – CONNECTORS section above.
Technical Specifications:
- Batch: 2025
- Nominal capacity:314 Ah
- Nominal voltage:3.2 V
- Energy: 1004.8Wh
- Operating voltage range:2.5 V ~ 3.65 V
- Maximum charging voltage:3.65 V
- Standard charging current: 157 A / 0.5C
- Maximum continuous discharge current:157 A / 0.5C
- Self-discharge rate:≤ 3% / month
- Internal resistance: 0.18 mΩ ± 0.05 mΩ
- Cycle count / lifespan:8000, 70% SOH @ 25 °C
- Operating temperature / charging:0 °C ~ 60 °C
- Operating temperature / discharging:-30 °C ~ 60 °C
- Storage temperature: -20°C ~ 45 °C (long-term 0°C ~ 35 °C)
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 314
- Energy (kWh)
- Rated voltage (V)
- 3,2
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- Case made of
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 5.60 kg
Specific References
- EAN13
- 8595210365503
No customer reviews for the moment.
Prismatic LiFePO4 traction cell with a capacity of 314Ah 3.2V for universal use from EVE.
