Cell LiFePO4 EVE 3,2V Grade A+ MB56 628Ah
LIFEPO4628

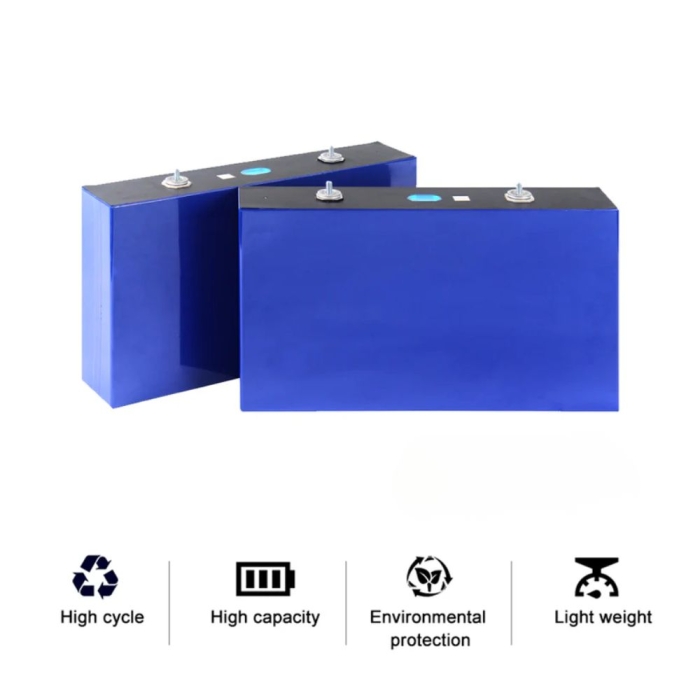

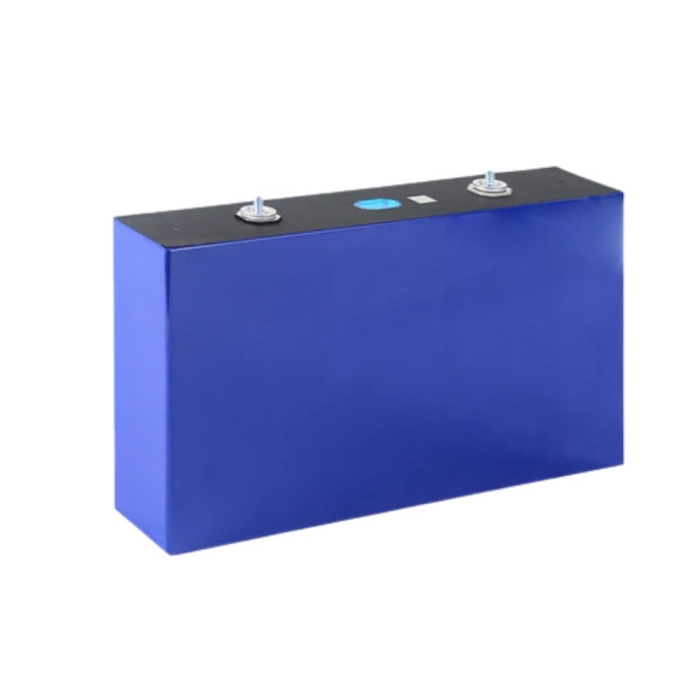

Prismatic LiFePO4 traction cell with a capacity of 628Ah 3.2V for universal use from EVE.
Lithium cells for long-lasting performance
Powerful lithium cells that deliver long-lasting performance for your projects. These lightweight and compact batteries offer excellent energy density and fast charging with long life. With our lithium cells, you'll be able to power your equipment with ease, and with confidence in their long-term reliability. Take on projects with the confidence that power will always be on hand!
Technical specifications:
- Rated capacity: 628 Ah
- Rated voltage: 3.2 V
- Energy: 2009.6 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current: 0.5C
- Maximum continuous discharge current: 0.5C
- Self-discharge rate: ≤ 3%/month
- Internal resistance: 0.10 mΩ ± 0.05 mΩ
- Cycle count/life: 8000, 70% SOH @ 25°C
- Operating temperature/charging: 0°C ~ 60°C
- Operating temperature/discharging: -30°C ~ 60°C
- Storage temperature: -20°C ~ 45°C (long term 0°C ~ 35°C)
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 628 Ah
- Energy (kWh)
- 2009,6 Wh
- Rated voltage (V)
- Clamp and tightening torque
- M6 / 6 Nm

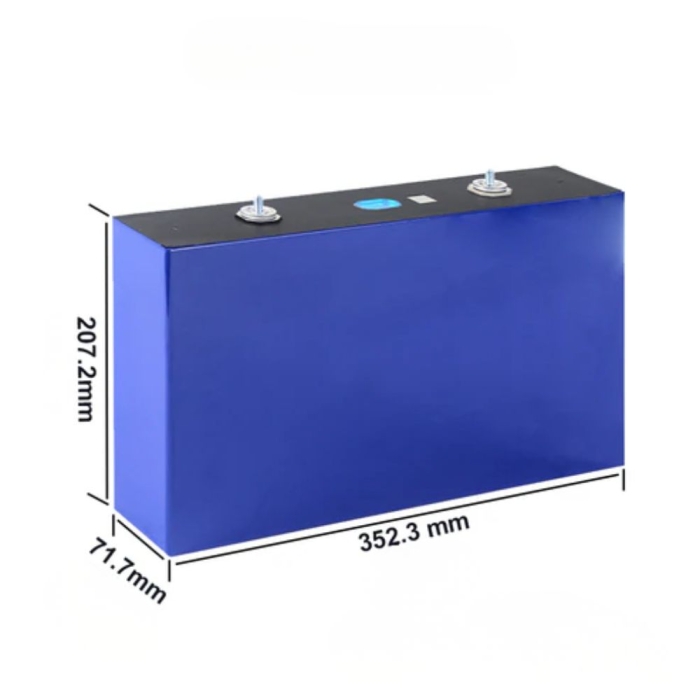

- Dimensions
- 352 × 207 × 72 mm
- Case made of
- aluminium
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 11.50 kg
Specific References
- EAN13
- 8595210332550
