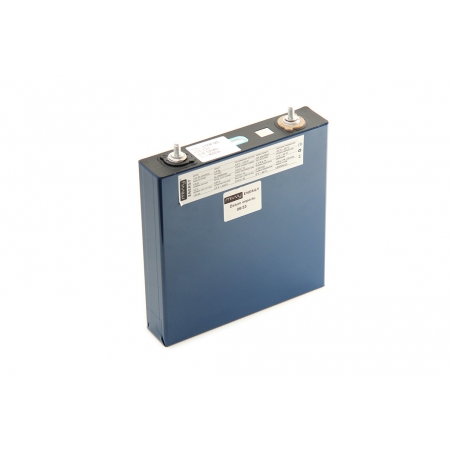

Cell LiFePO4 125Ah 3,2V CALB A+
LIFEPO4125C
Prismatic LiFePO4 traction cell with 125Ah and 3.2V capacity for universal use CALB quality.
Rating
Lithium cells for long-lasting performance
Powerful lithium cells that deliver long-lasting performance for your projects. These lightweight and compact batteries offer excellent energy density and fast charging with long life. With our lithium cells, you'll be able to power your equipment with ease, and with confidence in their long-term reliability. Take on projects with the confidence that power will always be on hand!
Technical specifications:
- Rated capacity: 125 Ah (0.5C / +25°C)
- Rated voltage: 3.2 V
- Energy: 400 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.8 V
- Standard charging current: 125 A / 1C
- Maximum continuous discharge current: 125 A / 1C
- Maximum discharge current (3 minutes): ?
- Self-discharge rate: ≤ 3% / month
- Internal resistance: ≤ 0.9 mΩ
- Number of cycles / lifetime: 4000 @ 1C / 1C
- Operating temperature / charging: 0 °C ~ 55 °C
- Operating temperature / discharging: -36 °C ~ 65 °C
- Storage temperature: -20 °C ~ 25 °C
Package Included: 1× lithium cell
Are you thinking of building a battery? You will need these jumpers.
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 125
- Rated voltage (V)
- 3,2
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- 174 × 175 × 36 mm
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 2.45 kg
Specific References
- EAN13
- 8595210365084
Recenze byla napsána na Zboží.cz
Pro:
Já tomu nerozumím, ale synovec, kterému jsem to přeposlala, je naprosto spokojený s kvalitou. Tento výrobek obstál ve srovnání s konkurenci od jiné zahraniční firmy.
Prismatic LiFePO4 traction cell with 125Ah and 3.2V capacity for universal use CALB quality.
