Yellow epoxy isolation plate with dimensions 170x200x0,5mm

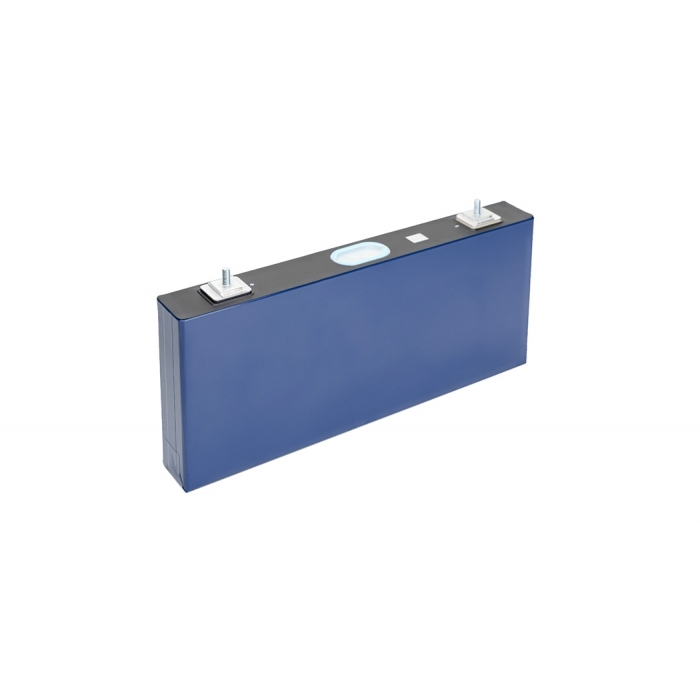

LiFePO4 213Ah 3.2V SVOLT Grade A Cells (R23/4-IV25)
P-LIFEPO4213
SVOLT 213Ah 3.2V Cells ● Prismatic traction batteries ● LiFePO4 chemistry with high stability ● Grade A quality ● Sold only in sets of 4
Lithium-ion Cells for Long-Lasting Performance
This SVOLT rechargeable battery cell with a capacity of 213Ah uses LiFePO4 chemistry. It is designed for better performance and a longer cycle life. It is rated Class A, meaning it meets all quality and safety requirements.

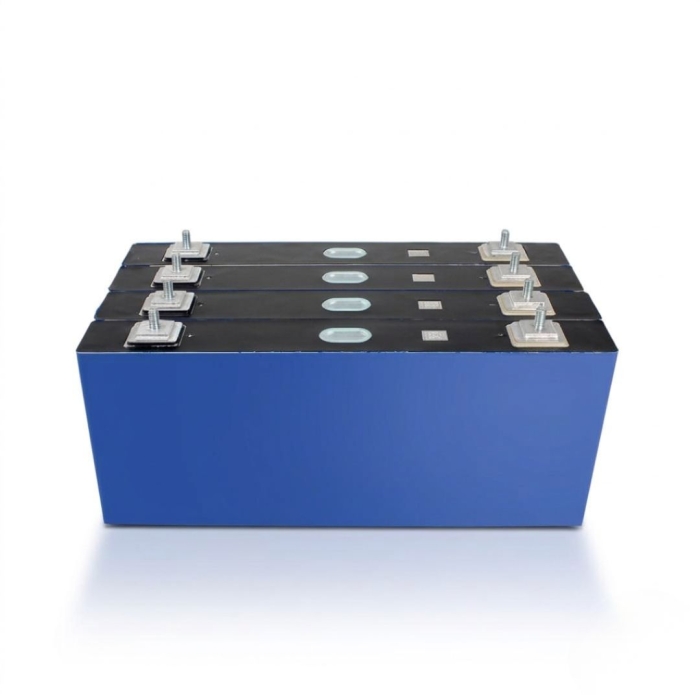

For logistical and technical reasons, cells aresold only in multiples of 4.
Note: Connectors are not included in the basic package. If you are building a battery pack, be sure to check the appropriate box in the Extra Options – CONNECTORS section above.
Technical Specifications:
- Batch: 2023/2024
- Nominal capacity: 213 Ah
- Nominal voltage:3.2 V
- Energy: 685.86Wh
- Operating voltage range:2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current: 71 A / 1/3C
- Maximum continuous discharge current: 213 A / 1C
- Self-discharge rate:≤ 3% / month
- Internal resistance: ≤ 0.6 mΩ
- Cycle count / lifespan: ≥2500 @ 80OH @ 25 °C
- Operating temperature / charging: -20 °C ~ 55 °C
- Operating temperature / discharging: -30 °C ~ 55 °C
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 213 Ah
- Energy (kWh)
- 685.86 Wh
- Rated voltage (V)
- 3,2
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- cca 300 ×114,9 × 72 mm
- Case made of
- aluminum
- Model
- Prismatic
- Package weight
- 17.20 kg
Specific References
- EAN13
- 859521036958
