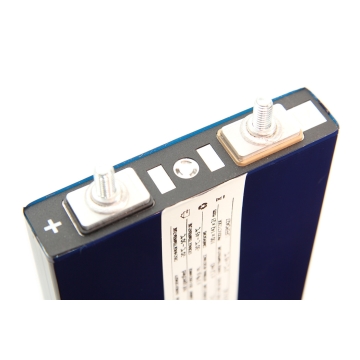

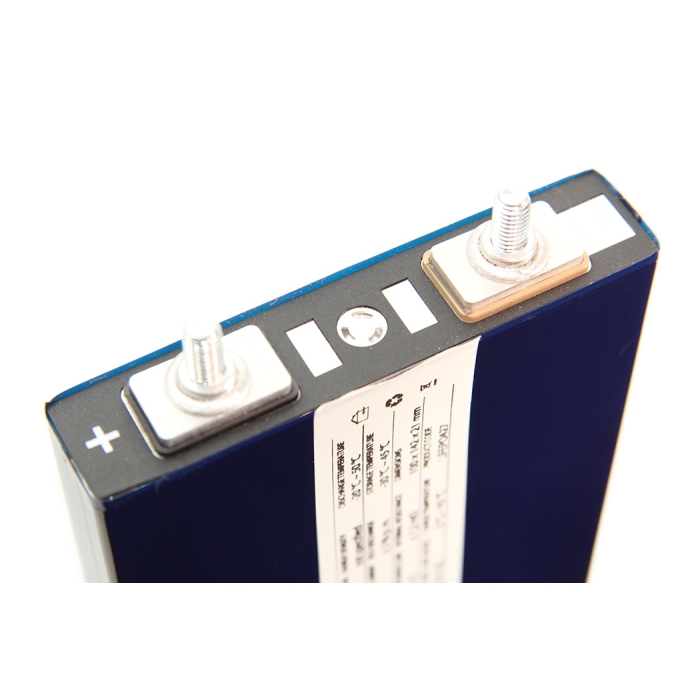

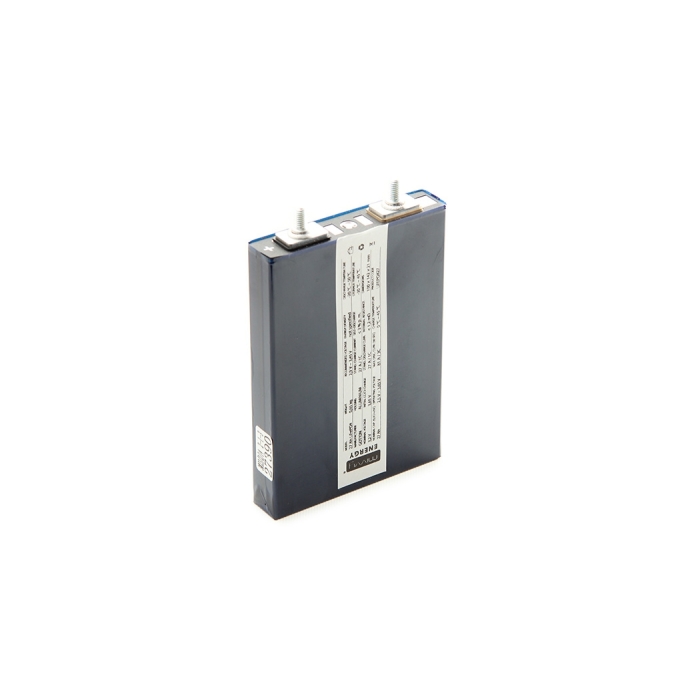

Cell LiFePO4 GOTION 3.2V 27Ah Grade A (R23/4-IX25)
LIFEPO427A
Prismatic cell traction LiFePO4 battery with 27Ah and 3.2V capacity for universal use. Class A quality.
Lithium cells for long-lasting performance
Powerful lithium cells that deliver long-lasting performance for your projects. These lightweight and compact batteries offer excellent energy density and fast charging with long life. With our lithium cells, you'll be able to power your equipment with ease, and with confidence in their long-term reliability. Take on projects with the confidence that power will always be on hand!
Notice: Connection hardware (busbars) is not included in the basic package. If you are building a battery pack, please remember to check the Extra Options – BUSBARS box above.
Technical specifications:
- Rated capacity: 27 Ah (0.5C / +25°C)
- Rated voltage: 3.2 V
- Energy: 86 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current: 27 A / 1C
- Maximum continuous discharge current: 27 A / 1C
- Maximum discharge current (3 minutes): 81 A / 3C
- Self-discharge rate: ≤ 3% / month
- Internal resistance: ≤ 1.2 mΩ
- Number of cycles / lifetime: > 3000
- Operating temperature / charging: 0 °C ~ 45 °C
- Operating temperature / discharging: -20 °C ~ 50 °C
- Storage temperature: -30 °C ~ 45 °C
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 27Ah
- Energy (kWh)
- 86 Wh
- Rated voltage (V)
- 3,2V
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- 100 × 142 × 21 mm
- Case made of
- aluminium
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 0.65 kg
Specific References
- EAN13
- 8595210300528
