Reliable mivvyENERGY AkuBoxes®

Get a reliable power source for your projects with our compact lithium batteries in the AkuBox®. These battery packs offer high capacity and a long service life. Whether you’re building electronic devices or constructing solar systems, our batteries will always provide you with plenty of power.

Default password for BMS connectivity: 1234
! The built-in BMS cannot be reconfigured; only the battery status can be monitored !



Technical specifications:

  • Rated capacity: 304Ah
  • Rated voltage: 12.8V
  • Energy: 3.89kWh
  • Connectivity: Smart Bluetooth
  • Final charging voltage: 14.00V
  • Final discharge voltage or 0% SoC: 12.6V
  • Active balancing: 2A
  • Maximum allowed voltage range at 100% DoD (if exceeded, the BMS disconnects the battery): 12V~14.4V
  • Maximum continuous charging current: 150A
  • Maximum continuous discharging current: 200A
  • Charge/discharge cycle efficiency: 97%
  • Protection rating: IP54
  • Number of cycles / service life: 4000 @ 70% DoD
  • Cell chemistry: LiFePO4
  • Charging operating temperature: 0°C~45°C
  • Discharging operating temperature: -20~45°C

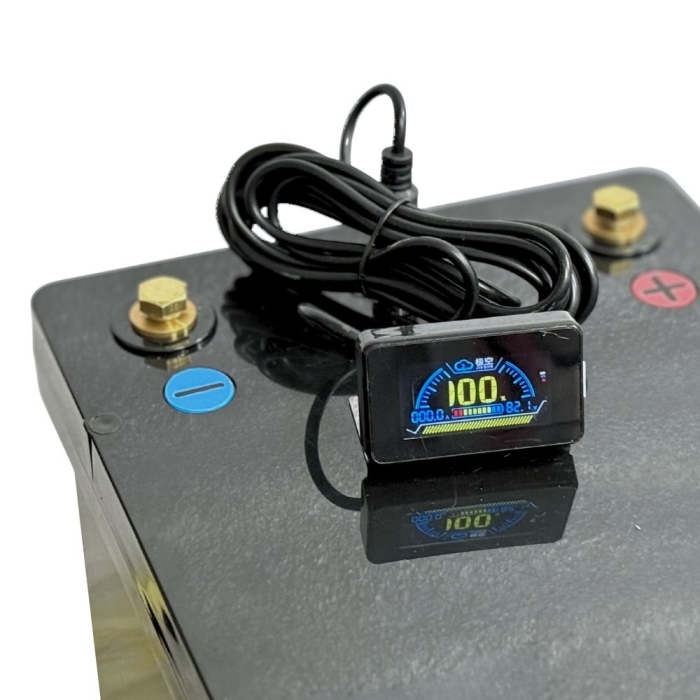

  • Cable length to LCD: 3m
  • Assembled from Grade A+ cells


Package includes: AkuBox


  • Multiple AkuBoxes cannot be connected in series
  • The BMS is factory-set to specific parameters. Any unauthorized intervention or modification of the set parameters will result in permanent damage to the product and void the warranty.

mivvy ENERGY

Features

Connectivity
Smart Bluetooth
Package weight
24.00 kg

Specific References

EAN13
8595210332475

Download

AkuBox manual

AkuBox manual

Download (353.28KB)

Prohlášení o shodě Akubox

Download (294.15KB)
