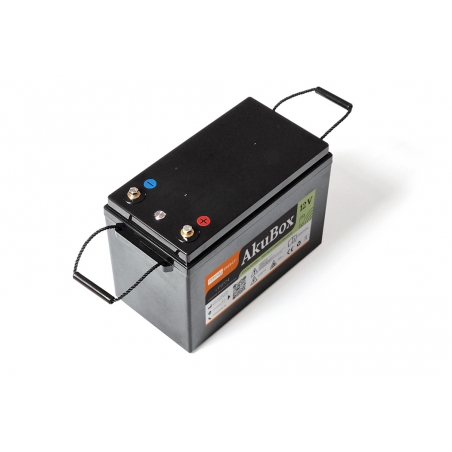

AkuBox LiFePO4 230Ah 12,8V 2,94kWh - with heating

Reliable mivvyENERGY AkuBoxes®

Get a reliable power source for your projects with our compact lithium batteries in AkuBox®. These battery packs offer high capacity and a long service life. Whether you’re building electronic devices or constructing solar systems, our batteries will always provide you with plenty of power.


! The built-in BMS cannot be reconfigured; only the battery status can be monitored !

Technical specifications:

• Rated capacity: 230Ah
• Rated voltage: 12.8V
• Energy: 2.94kWh
• Connectivity: Smart Bluetooth
• Final charging voltage: 13.70V
• Final discharge voltage or 0% SoC: 12.6V
• Maximum allowed voltage range at 100% DoD (if exceeded, the BMS disconnects the battery): 12V~14.2V
• Maximum continuous charging current: 100A
• Maximum continuous discharge current: 200A
• Charge/discharge cycle efficiency: 97%
• Active balancing: Yes
• Integrated heating foils
• Protection rating: IP54
• Number of cycles / lifespan: 4000 @ 70% DoD
• Chemical composition of cells: LiFePO4
• Charging operating temperature: 0°C~45°C (If the temperature drops below the limit, battery heating will be activated. It works automatically)
• Operating discharge temperature: -25°C~45°C

Package includes: AkuBox

• Multiple AkuBoxes cannot be connected in series
• The BMS is factory-set to specific parameters. Any unauthorized intervention or modification of the set parameters will result in permanent damage to the product and void the warranty.
