The JBD Smart BMS 8S~20S 200A is a protection circuit with balancer for 8 to 20 LiFePO4 cells that provides protection, control and management of battery parameters and processes. The BMS cannot be connected in parallel.

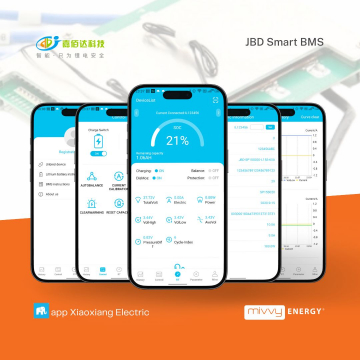

BMS with integrated Bluetooth for precise real-time battery monitoring. JBD BMS provides battery cell protection, capacity calculation and balancing. Before first use, the negative battery terminal must first be connected to the BMS. Then the balance connector, which is already connected to the individual battery cells, needs to be connected. Failure to follow this sequence may result in permanent damage to the BMS.

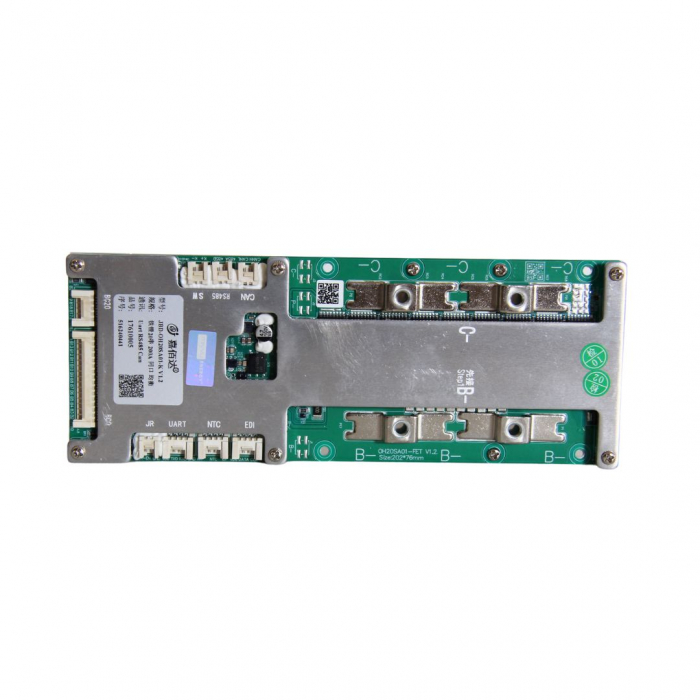

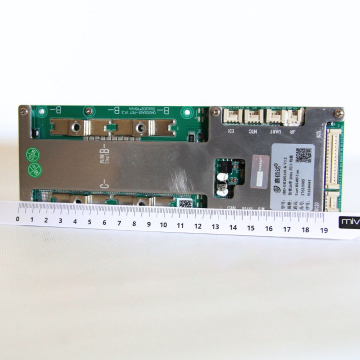

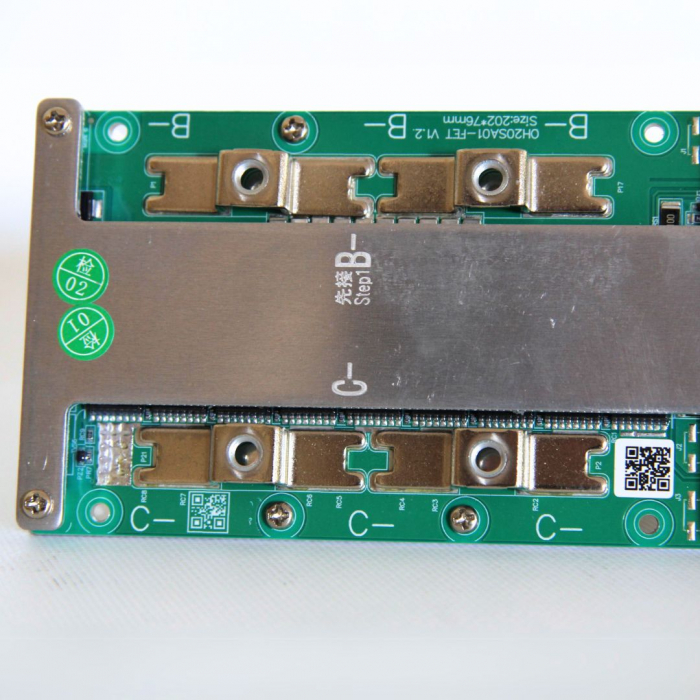

The intelligent BMS (battery management system) acts as a protection circuit specifically designed for strings of 8 to 20 LiFePO4 battery cells. The BMS includes a balancer that effectively adjusts the voltage of each cell. The BMS hardware is embedded between two aluminum alloy plates that provide good heat dissipation in addition to physical protection.
Features
Specific References
