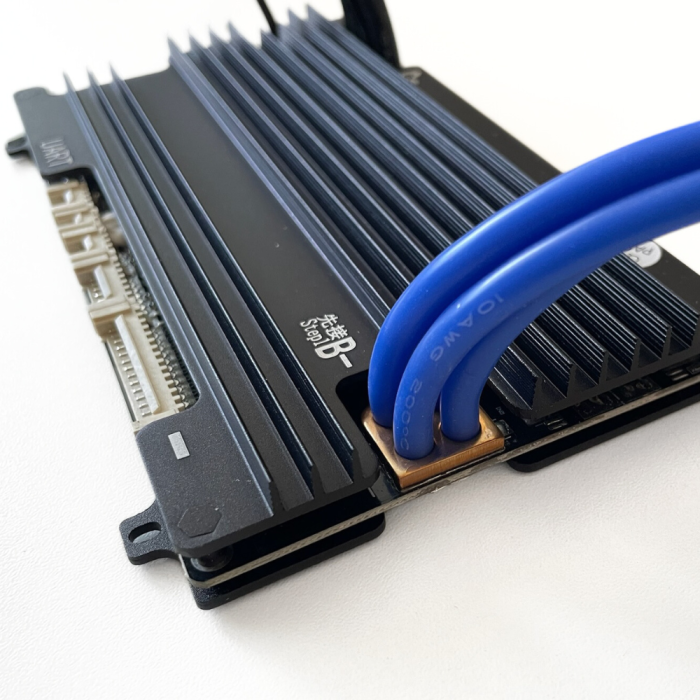

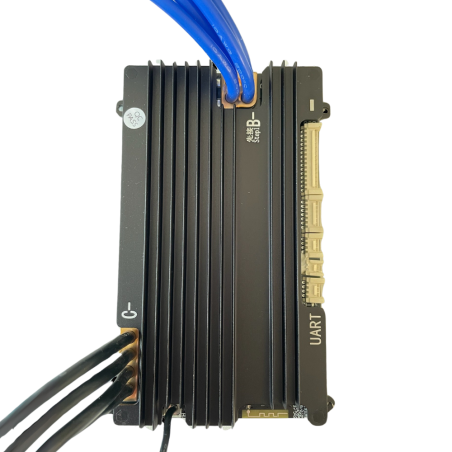

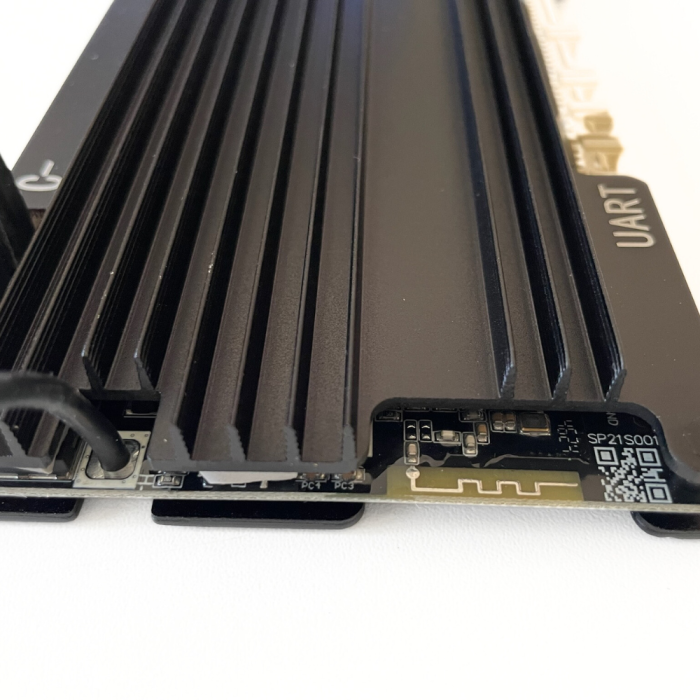

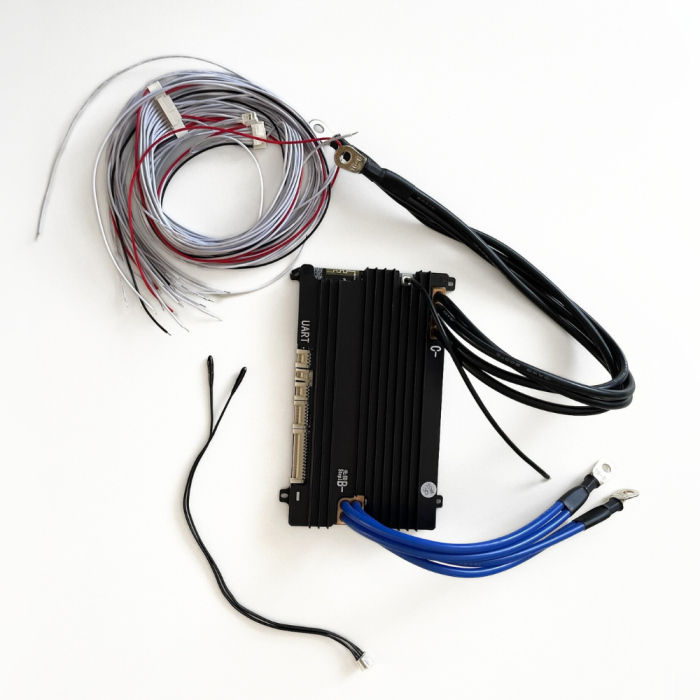

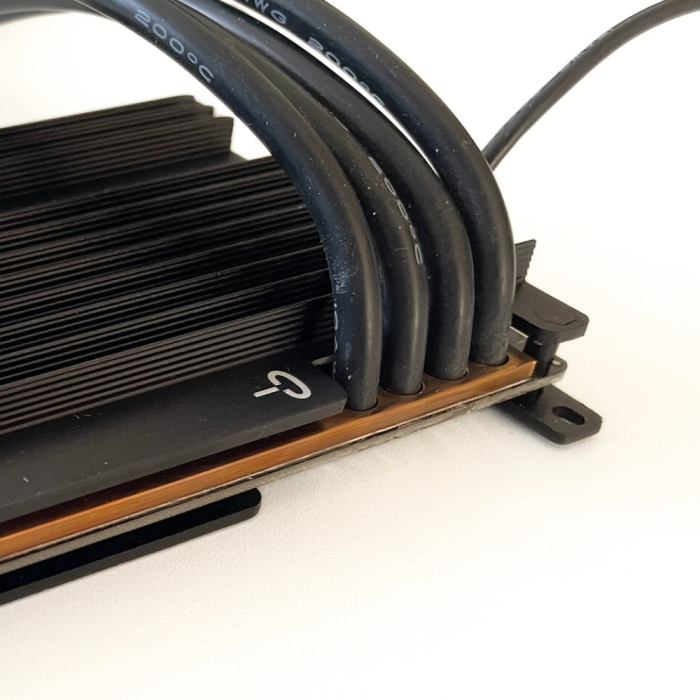

Equipment designed to monitor and control the processes of charging, balancing and discharging batteries and to protect them.
Monitor individual battery cell voltage, current or temperature and other parameters in real time. This Smart BMS has integrated Bluetooth technology that allows you to control and monitor your battery directly from your mobile phone or tablet. Use the QR code below to get the app.
Before first use, the negative terminal of the battery must be connected to the BMS first. Then the balance connector, which is already connected to the individual battery cells, needs to be connected. Failure to follow this connection sequence may result in permanent damage to the BMS.
Features
Specific References
