Accessories for grouping cylindrical cells.

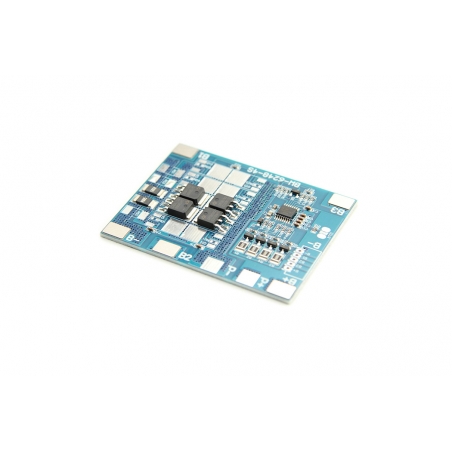

BMS with active balancer 4S 10A BANWANG
BALACTBW4S10A
BMS 10A with active balancer 0,6A for 4S LiFePO4 battery cells.
Price: Kč76
Price excl. VAT: Kč63
Price excl. VAT: Kč63
Original price: Kč89
Save 15%
Discount is calculated on the final retail price.
Rating
BW BMS 4S 10A with active balancer
Balancing BMS for 4S lithium battery cells. Used to protect the battery against over-discharge or over-charge. Using the battery without a BMS will result in damage to the battery.
The BMS monitors the voltage of all cells and ensures that they are evenly charged. If the BMS detects that any of the set limits are exceeded, it protects the battery from damage by cutting off the power supply.
Technical specifications:
- Suitable for battery type: LiFePO4
- Number of batteries connected in series: 4
- Balance current: 0.6A
- Balance mode: active balance
- Normal working temperature range: -30℃～80℃
- Communication: none
- Continuous current: 10A
The package contains: BMS
- This BMS with balancer is suitable for 4S battery packs
- P- (charge - / discharge -), P+ (charge + / discharge +)
- B- (- battery terminals), B+ (+ battery terminals)
- B1~B3 (battery cells)
Features
- Chemical composition
- LiFePO4
- Dimensions
- 62 × 48 × 4 mm
- Balancing current
- 0,6A
- Operating temperature range
- -30～80°C
- Package weight
- 0.01 kg
Specific References
- EAN13
- 8595210331423
Recenze byla napsána na Heureka.cz
Pro:
zatím jsem to poradně neotestoval tyto dotazníky chodí strašně brzo
Recenze byla napsána na Heureka.cz
Pro:
Zatim napouzito, ale verim ze bude fungovat bez problemu...
BMS 10A with active balancer 0,6A for 4S LiFePO4 battery cells.
