EVE's MB31 prismatic LiFePO4 traction cell with a capacity of 314 Ah at 3.2 V for general-purpose use.

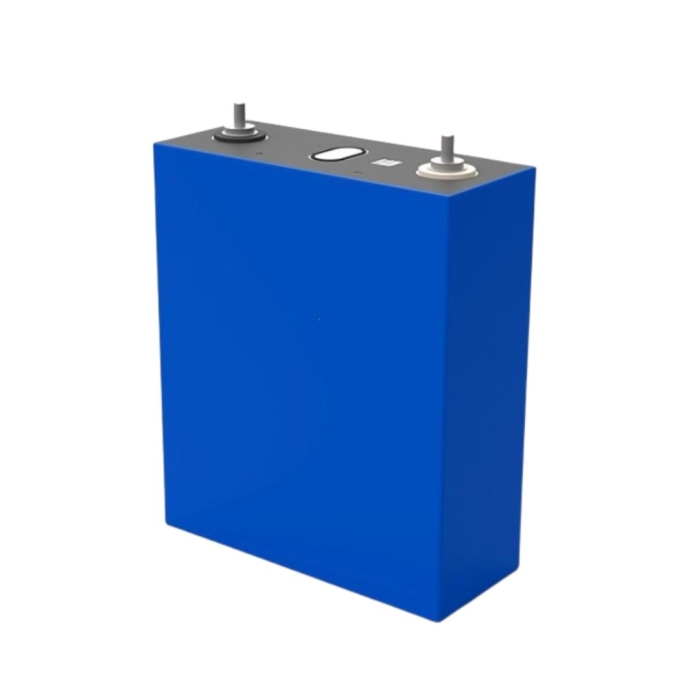

Cells LiFePO4 BATTERO TECH 324Ah 3.2V Grade A+ (R23/4-VI25)
P-LIFEPO4324R

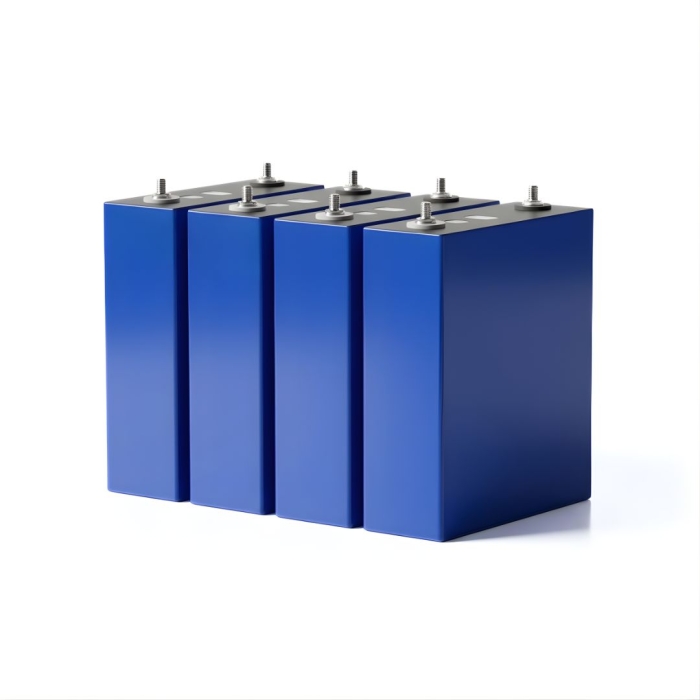

BATTERO 324Ah 3.2V Cells ● Prismatic Traction Batteries ● Advanced LiFePO4 Technology for High-Load Applications ● Grade A+ Quality ● Sold Only in Sets of 4 Units
LiFePO4 Cells: BATTERO 324Ah
This battery cell from BATTERO represents a state-of-the-art solution based on lithium iron phosphate technology. Thanks to advanced LiFePO4 chemistry and a robust design, it ensures stable performance even under demanding operating conditions. With a capacity of 324 Ah, it is the ideal choice for high-load applications. For logistical and technical reasons, cells are sold only in multiples of 4.
Note: Connectors are not included in the basic package. If you are building a battery pack, be sure to check the appropriate box in the Extra Options – CONNECTORS section above.
Technical specifications:
- Batch: 2023/2024
- Nominal capacity: 324 Ah
- Nominal voltage:3.2 V
- Energy: 1017Wh
- Operating voltage range: 2.5 ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current: 107 A / 0.33 C
- Maximum continuous discharge current: 324 A / 1 C
- Self-discharge rate:≤ 3% / month
- Internal resistance: ≤ 0.22 mΩ
- Cycle count / lifespan: ≥3500 @ 80%
- Operating temperature / charging: 0 °C ~ 60 °C
- Operating temperature / discharging: -30 °C ~ 60 °C
- Storage temperature: -40 °C ~ 60 °C
- Class: A+
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 324
- Energy (kWh)
- 1.017
- Rated voltage (V)
- 3,2
- Clamp and tightening torque
- M6 / 6 Nm

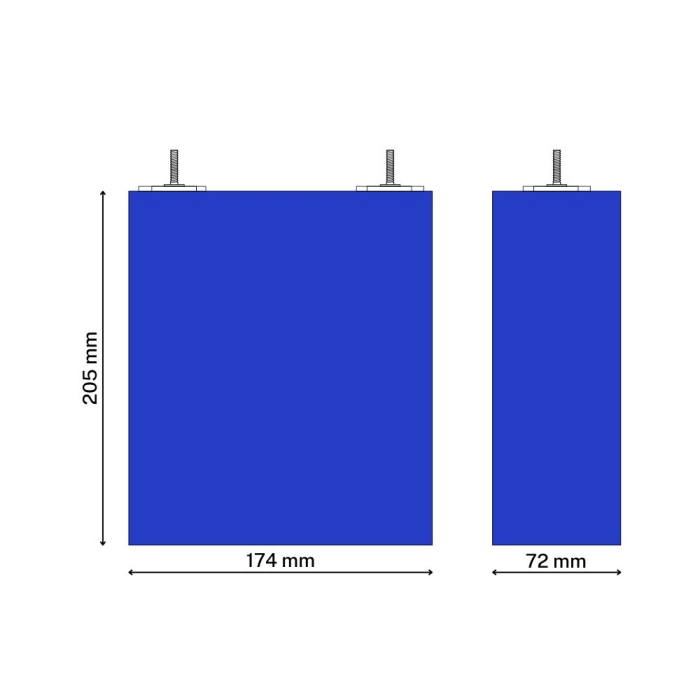

- Dimensions
- 174 ×205 × 72 mm
- Case made of
- aluminum
- Model
- Prismatic
- Package weight
- 22.00 kg
Specific References
- EAN13
- 8595210300313
No customer reviews for the moment.
BATTERO 324Ah 3.2V Cells ● Prismatic Traction Batteries ● Advanced LiFePO4 Technology for High-Load Applications ● Grade A+ Quality ● Sold Only in Sets of 4 Units
