Yellow epoxy isolation plate with dimensions 170x200x0,5mm

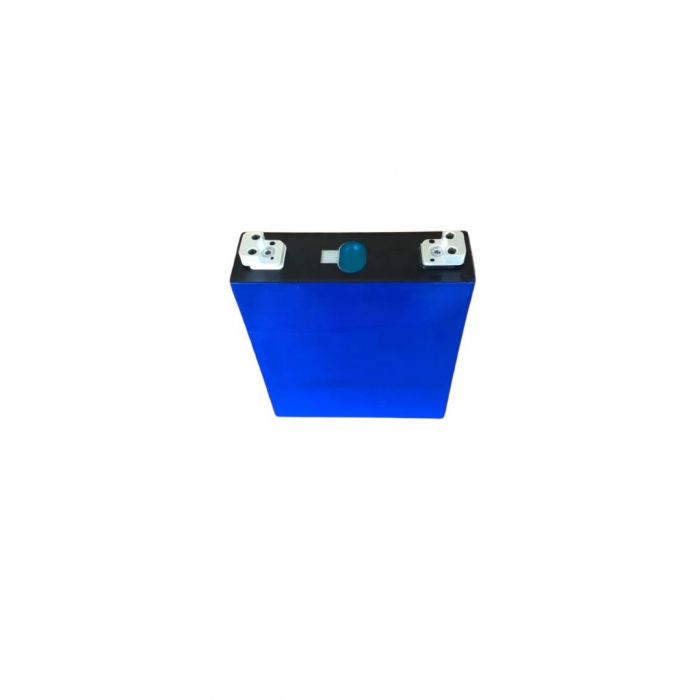

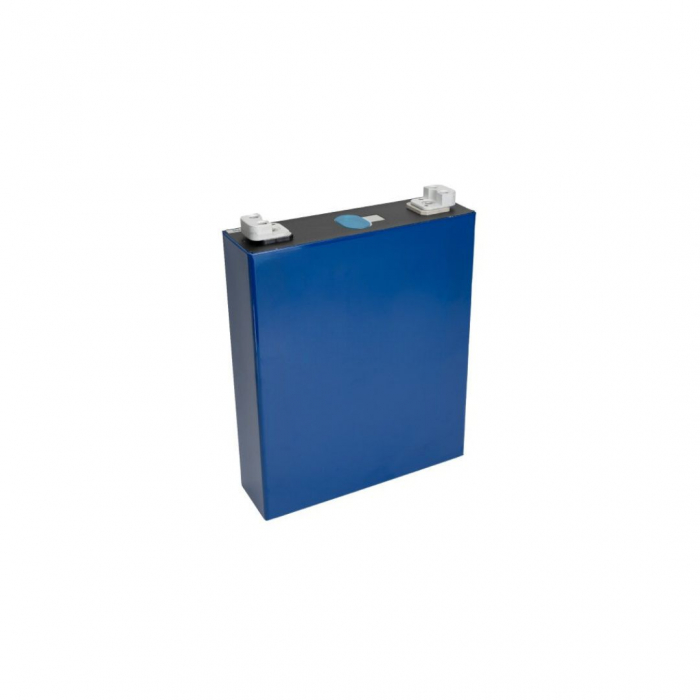

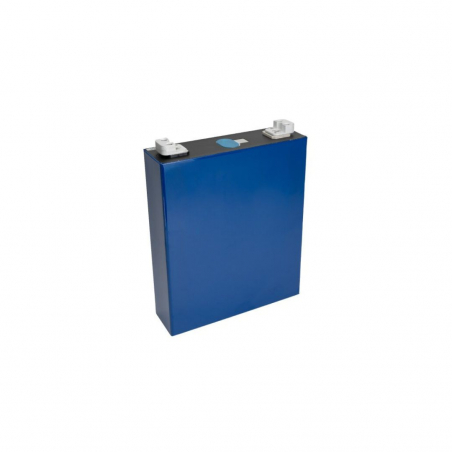

MB31LiFePO4 314Ah 3.2V EVE Grade A+ D06 Cell
LIFEPO4314ED06
EVE's MB31 prismatic LiFePO4 traction cell with a capacity of 314 Ah at 3.2 V for general-purpose use.
Rating
Lithium cells for long-lasting performance
Powerful lithium cells that deliver long-lasting performance for your projects. These lightweight and compact batteries offer excellent energy density and fast charging with long life. With our lithium cells, you'll be able to power your equipment with ease, and with confidence in their long-term reliability. Take on projects with the confidence that power will always be on hand!
Notice: Connection hardware (busbars) is not included in the basic package. If you are building a battery pack, please remember to check the Extra Options – BUSBARS box above.
Technical specifications:
- Rated capacity: 314 Ah
- Rated voltage: 3.2 V
- Energy: 1004.8 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current: 157 A / 0.5C
- Maximum continuous discharge current: 157 A / 0.5C
- Self-discharge rate: ≤ 3% / month
- Internal resistance: 0.18 mΩ ± 0.05 mΩ
- Cycle count / life: 8000, 70% SOH @ 25°C
- Operating temperature / charging: 0°C ~ 60°C
- Operating temperature / discharging: -30°C ~ 60°C
- Storage temperature: -20°C ~ 45°C (long term 0°C ~ 35°C)
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 314
- Energy (kWh)
- 1004.8 Wh
- Rated voltage (V)
- 3,2
- Clamp and tightening torque
- 2x M6 / 6 Nm
- Dimensions
- 174 × 205 × 72 mm
- Case made of
- aluminium
- Model
- Prismatic
- Quality grade
- A
- Package weight
- 6.10 kg
Specific References
- EAN13
- 8595210365442
