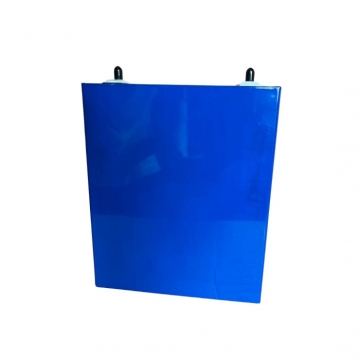

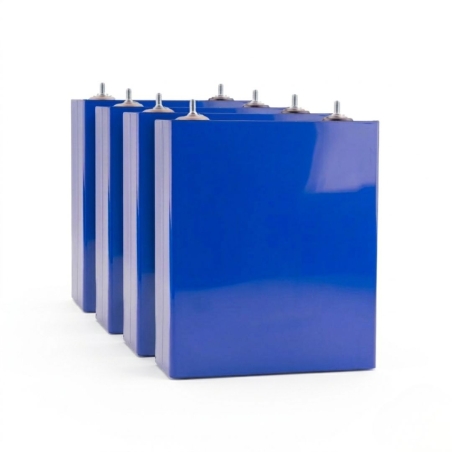

LiFePO4 222Ah 3.2V SVOLT A+ Cells (R23/4-IX25)
P-LIFEPO4222
SVOLT 222Ah 3.2V Cells ● Prismatic traction batteries ● LiFePO4 chemistry with high stability ● Grade A+ quality ● Sold only in sets of 4
Lithium-ion cells for long-lasting performance
This SVOLT rechargeable battery cell with a capacity of 222Ah uses LiFePO4 chemistry. It is designed for better performance and a longer cycle life. It is rated Class A, meaning it meets all quality and safety requirements.
For logistical and technical reasons, cells aresold only in multiples of 4.
Note: Connectors are not included in the basic package. If you are building a battery pack, be sure to check the appropriate box in the Extra Options – CONNECTORS section above.
Technical Specifications:
- Batch: 2023/2024
- Nominal capacity: 222 Ah
- Nominal voltage:3.2 V
- Energy: 710 Wh
- Operating voltage range: 2.5 V ~ 3.65 V
- Maximum charging voltage: 3.65 V
- Standard charging current: 111 A
- Standard discharging current: 111 A
- Self-discharge rate:≤ 3% / month
- Internal resistance: ≤ 0.2 mΩ
- Cycle life / service life: ≥6000 @ 25 °C
- Operating temperature / charging: 0~55 °C
- Operating temperature / discharging: -20~55 °C
- Class: A
Features
- Chemical composition
- LiFePO4
- Rated capacity (Ah)
- 222
- Energy (kWh)
- 0.71
- Rated voltage (V)
- 3,2
- Clamp and tightening torque
- M6 / 6 Nm
- Dimensions
- cca 174 × 207 × 54 mm
- Case made of
- aluminum
- Model
- Prismatic
- Package weight
- 16.70 kg
Specific References
- EAN13
- 8595210300245
No customer reviews for the moment.
SVOLT 222Ah 3.2V Cells ● Prismatic traction batteries ● LiFePO4 chemistry with high stability ● Grade A+ quality ● Sold only in sets of 4
You might also like
Yellow epoxy isolation plate with dimensions 170x200x0,5mm
- Bluetooth
Composite battery - AkuBox® 314Ah 12V Smart Bluetooth with active balancing 2000 mA. Made of traction LiFePO4 cells including BMS, switch in plastic box.
- Bluetooth
Composite battery - AkuBox® 314Ah 24V. Made of traction LiFePO4 cells including active Smart BMS, in plastic box.
Copper busbar for LiFePO4 230Ah or 222Ah cells. The busbar has a pure copper core and a nickel plated surface. No need to buy AL-CU (CUPAL) washers.
8 other products in the same category:
LiFePo4 battery EVE model C40 with capacity 20Ah and voltage 3,2V.
- SUPER PRICE
SVOLT 213Ah 3.2V Cells ● Prismatic traction batteries ● LiFePO4 chemistry with high stability ● Grade A quality ● Sold only in sets of 4

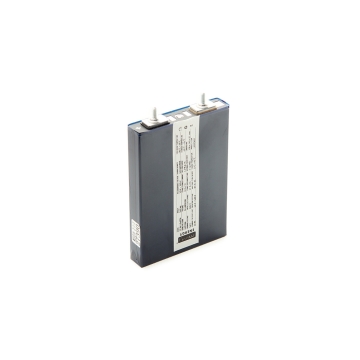

Prismatic cell traction LiFePO4 battery with 27Ah and 3.2V capacity for universal use. Class A quality.
